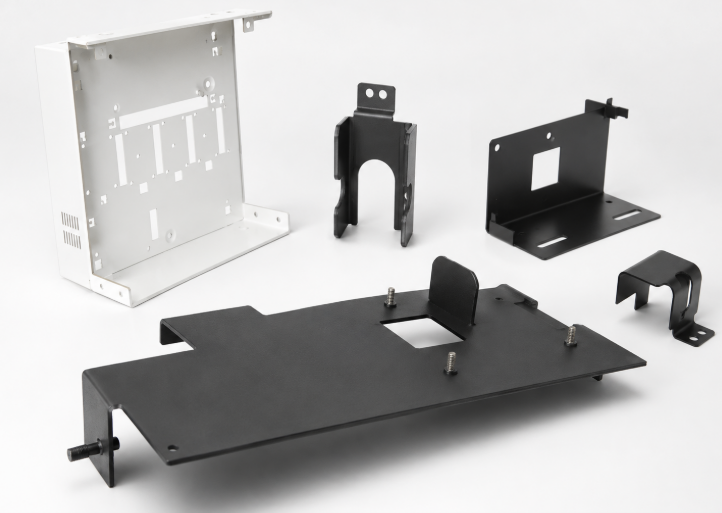

A Sheet Metal Bracket is a small but important part in metal fabrication. It helps support, connect, position, or protect components in cabinets, racks, metal enclosures, electrical systems, and industrial equipment.
For B2B buyers, choosing the right Sheet Metal Bracket can improve installation accuracy, reduce assembly problems, and make the final product more stable.
A Sheet Metal Bracket is a fabricated metal support part used to mount, fix, connect, or protect components in an assembly. It is commonly made through cutting, bending, welding, accessory installation, and surface treatment.
This guide explains the basic function of Sheet Metal Brackets, common bracket types, and important design points for industrial projects.
It also introduces typical bracket options used in cabinet rack metal enclosures, outlet modules, terminal components, and custom sheet metal fabrication.
Section | Summary |
|---|---|
What Are Sheet Metal Brackets? | Explains the function, production process, and main applications of Sheet Metal Brackets in metal enclosures and equipment. |
Different Types of Metal Brackets | Compares L-Shaped Brackets, U-Shaped Brackets, Outlet Brackets, and Terminal Brackets with practical product examples. |
Bracket Design Consideration | Introduces key design factors such as material, thickness, hole accuracy, surface finish, load, grounding, and customization. |
A Sheet Metal Bracket is a metal part used to support, secure, align, or connect components in an industrial assembly.
It is usually made from flat sheet metal. The sheet is cut, bent, formed, welded, or finished according to the required structure. In many industrial projects, the bracket is customized to match the enclosure, mounting holes, cable layout, and installation environment.
Sheet Metal Brackets are widely used in cabinet rack metal enclosures, electrical boxes, outdoor equipment, control panels, machinery, and metal housing systems. They can hold components, reinforce structures, or create fixed mounting points.
A bracket may include round holes, slot holes, threaded nuts, bent flanges, cable windows, or grounding points. These details help make installation easier and more reliable.
Common production processes include laser cutting, CNC bending, welding, riveting, nut insertion, and surface finishing. Depending on the use environment, finishes may include powder coating, electrogalvanizing, anodizing, electroplating, or black oxide treatment.
Application Area | Bracket Function | Main Concern |
|---|---|---|
Cabinet rack enclosure | Fixes enclosure to wall, post, or frame | Strength and hole accuracy |
Electrical system | Holds switches, boards, or modules | Alignment and safety |
Outdoor enclosure | Supports exposed components | Weather resistance |
Machinery | Holds protective or control parts | Stability and durability |
Modular metal box | Connects internal parts | Custom fit |
A good Sheet Metal Bracket should match the whole assembly. It should be strong enough, easy to install, accurate in size, and suitable for the working environment.
Metal brackets come in different shapes and functions. Common options include L-Shaped Brackets, U-Shaped Brackets, Outlet Brackets, and Terminal Brackets.
Each bracket type solves a different installation problem. Some brackets support heavy enclosures, while others hold electrical modules, terminals, cables, or control boards.
The right type depends on the mounting direction, component weight, enclosure structure, and working environment. For example, outdoor brackets may need corrosion resistance, while electrical brackets may need grounding and precise hole positions.
Bracket Type | Main Function | Best Used For | Key Focus |
|---|---|---|---|
L-Shaped Brackets | Right angle support | Wall or post mounting | Load capacity |
U-Shaped Brackets | Side holding or housing | Manual release parts | Shape stability |
Outlet Brackets | Module installation | Switches and outlet parts | Module fit |
Terminal Bracket | Electrical part support | Boards, terminals, cables | Fast assembly |
L-Shaped Brackets are right angle support parts. They are often used to connect an enclosure to a wall, post, rack, or frame.
A typical example is the High Strength Mounting Bracket for Cabinet Rack Metal Enclosure. This bracket is designed for fixing a stainless steel metal enclosure to a wall or post.
This type of Sheet Metal Bracket uses slot holes and precision holes for flexible installation. CNC machining helps control hole accuracy and improve assembly fit.
For heavy enclosures, material thickness and strength are very important. High tensile steel and strong bolts can improve load capacity and installation safety.
L-Shaped Brackets are suitable when the enclosure needs firm wall mounting, post mounting, or frame support.
U-Shaped Brackets are formed metal parts with a channel style structure. They can hold or protect a component from more than one side.
A related example is the Manual Release House for Enclosure Metal Dividers. It is used for setting a manual release device in an enclosure metal box.
This type of bracket or housing is useful when the device needs stable positioning and side protection. It may also support safety related functions in machinery or enclosure systems.
U-Shaped Brackets require good forming accuracy. The opening size, bending angle, and material strength affect the final fit.
They are suitable for manual release parts, protected device areas, enclosure dividers, and custom formed metal housings.
Outlet Brackets are used to install electrical outlets, switch buttons, and functional modules in metal enclosures.
A practical example is the Outlet Sheet Metal Bracket for Metal Enclosure Fabrication. It is used as part of a metal enclosure for a water heater and supports electrical components.
Outlet Brackets need accurate module openings and mounting holes. This helps switches and outlet parts fit correctly during assembly.
If the bracket is exposed outside the enclosure, surface treatment is important. Aluminum, stainless steel, or electrogalvanized finishes can improve weather resistance.
Outlet Brackets are suitable for water heater enclosures, electrical boxes, outdoor panels, switch modules, and outlet installation areas.
A Terminal Bracket is used to mount terminal parts, control boards, LED screens, cables, or electrical components inside a metal enclosure.
A typical example is the Sheet Metal Terminal Bracket for Cabinet Rack Metal Enclosure. It can be fixed with both the cabinet rack metal enclosure and electrical components.
This bracket can use preset nuts to make installation faster. Preset nuts reduce loose hardware and improve assembly consistency.
A central opening window can help collect and route cables. This makes the enclosure cleaner and easier to maintain.
Terminal Brackets are suitable for control boards, LED screens, terminal modules, cable routing, and grounded electrical assemblies.
Bracket design should consider load, material, thickness, hole accuracy, bending structure, surface treatment, accessory installation, grounding, and working environment.
The design should start from the final assembly. A Sheet Metal Bracket must match the component it supports, the enclosure structure, and the installation method.
Load direction is one of the first factors to check. A wall mounted enclosure needs stronger support than a small internal electrical bracket.
Material should match the application. Stainless steel is suitable for corrosion resistance. Carbon steel is common for strength and cost control. Aluminum is useful when lightweight and weather resistance are required.
Thickness affects strength and cost. A heavy mounting bracket may need thick high tensile steel, while a small terminal bracket may need better precision rather than high thickness.
Hole design also matters. Slot holes allow adjustment, while precision round holes help fixed positioning. Cable windows can improve wiring and maintenance.
Bending design should be easy to manufacture. Bend radius, flange length, opening size, and forming direction can affect strength and production stability.
Surface treatment should match the environment. Powder coating, electrogalvanizing, anodizing, and electroplating can improve corrosion resistance, appearance, or durability.
Accessory installation can improve assembly speed. Preset nuts, bolts, studs, and standoffs help make the bracket easier to install.
For electrical applications, grounding and cable routing should be considered early. This improves safety and reduces rework during assembly.
Design Item | What to Confirm | Why It Matters |
|---|---|---|
Application | Enclosure, outlet, terminal, or support part | Defines function |
Load | Weight and force direction | Prevents deformation |
Material | Steel, stainless steel, aluminum, or galvanized sheet | Controls strength and corrosion resistance |
Thickness | Required bearing capacity | Balances strength and cost |
Holes | Slot holes, round holes, cable windows | Improves fit |
Surface | Coating or plating method | Extends service life |
Accessories | Nuts, studs, bolts, standoffs | Speeds assembly |
Environment | Indoor, outdoor, humid, or exposed | Guides material choice |
Safety | Grounding and cable routing | Supports safe operation |
Quantity | Prototype or batch production | Affects process planning |
A well designed Sheet Metal Bracket should be practical, strong, easy to produce, and simple to install. It should also support repeatable quality from sample production to mass production.
A Sheet Metal Bracket is an important part of sheet metal fabrication. It helps support, connect, mount, and protect components in enclosures, racks, electrical systems, and industrial equipment.
Different bracket types serve different needs. L-Shaped Brackets are used for right angle support and strong mounting. U-Shaped Brackets provide side holding and protection. Outlet Brackets support electrical modules. Terminal Brackets help mount boards, terminals, and cables.
When choosing a Sheet Metal Bracket, buyers should consider load, material, thickness, hole design, surface treatment, installation method, and working environment.
A properly designed Sheet Metal Bracket can improve product stability, simplify assembly, reduce installation problems, and support reliable long term use in industrial applications.
