Lead screws are integral components in linear motion systems, used extensively in a variety of applications where precise movement is required. Whether in CNC machines, medical devices, or semiconductor manufacturing equipment, the ability to transmit motion with accuracy and reliability is crucial. At Sollwin Enterprise Co., Ltd., we specialize in manufacturing high-quality lead screws designed for precision performance. This article will explore the mechanics behind lead screw precision, the materials and manufacturing tolerances that contribute to their efficiency, and why they are chosen for applications that require meticulous control over movement.

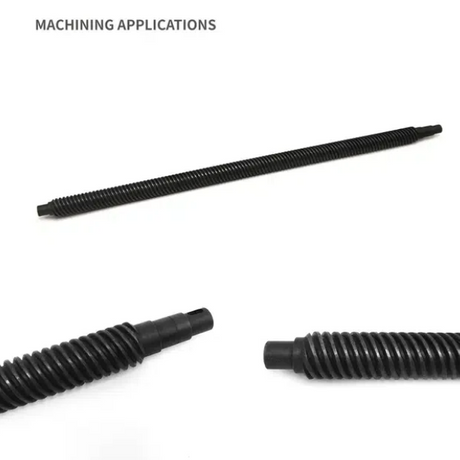

A lead screw, also known as a power screw or translation screw, is a mechanical device used to convert rotary motion into linear motion. This motion is achieved by the interaction between a threaded shaft (the lead screw) and a nut. The lead screw is often used in situations where a controlled, linear movement is needed, and it can be found in applications ranging from robotics to precision machinery.
Lead screws are typically made from high-strength materials such as alloy steel, offering a balance between strength and toughness. The threads are designed in a trapezoidal shape, which ensures a better fit and more efficient motion transfer between the lead screw and its nut. With different starts and pitches, lead screws can be customized for various rotational speeds and torque requirements, making them versatile components for different engineering solutions.
Precision is paramount when it comes to lead screws, especially when they are used in high-precision applications like CNC machines or medical devices. Several factors contribute to the precision of a lead screw, including thread design, pitch accuracy, and the lead angle.
Thread Design and Its Impact on Linear Motion
The thread design of a lead screw plays a critical role in its efficiency and precision. The trapezoidal shape of the threads ensures a better contact area between the lead screw and the nut, allowing for smoother motion and less friction. A high-quality thread design minimizes the risk of slippage, which can lead to imprecise movement.
Pitch Accuracy
The pitch of the lead screw refers to the distance between adjacent threads. Accurate pitch is crucial because even slight variations can result in uneven motion, leading to inaccuracies. Precision in pitch ensures that the lead screw moves with the desired accuracy and speed.
Role of the Lead Angle
The lead angle, the angle between the lead screw’s thread and the axis of rotation, also plays a key role in the movement precision. A larger lead angle results in higher axial force efficiency but can also increase the chances of backlash, which can reduce precision. Therefore, careful design of the lead angle is essential to balance efficiency with accuracy.
The performance and durability of a lead screw are heavily influenced by the materials used and the manufacturing tolerances.
Common Materials Used
Lead screws are often made from materials such as stainless steel, bronze, or alloy steel. These materials provide a good balance between strength, toughness, and resistance to wear. Stainless steel, for instance, is corrosion-resistant, making it ideal for environments where moisture or harsh chemicals may be present.
Surface Finishing and Hardening Processes
To enhance the performance and lifespan of lead screws, surface finishing and hardening processes are applied. These processes help reduce friction, improve wear resistance, and increase overall durability. For example, heat treating or coating the lead screw can make it more resistant to corrosion and wear, ensuring it maintains its precision over time.
Precision Machining Techniques
Achieving tight tolerances in manufacturing is essential for lead screw precision. At Sollwin, we employ advanced machining techniques to ensure that each lead screw is produced with exacting specifications. This level of precision is crucial, especially for applications where even the smallest deviation can affect the performance of the system.
In addition to the lead screw itself, the nut design and fit play an essential role in achieving precise motion. There are various types of nuts used in lead screw systems, including acme, trapezoidal, and ball nuts. Each type has its own advantages depending on the application.
Different Types of Nuts
Acme Nuts: These are commonly used in lead screw systems for general applications, providing a good balance between strength and cost.
Trapezoidal Nuts: Offering more efficient motion transmission, trapezoidal nuts are designed to minimize backlash and improve overall performance.
Ball Nuts: These are used in ball screw systems to reduce friction and backlash significantly, which is especially important in high-precision applications.
Backlash Reduction Mechanisms
Backlash, the slight movement that occurs when a lead screw or nut reverses direction, is a common issue in many mechanical systems. To address this, various backlash reduction mechanisms can be employed, such as preloading the nut or using anti-backlash nuts. These mechanisms ensure that the lead screw maintains its precision even when the direction of motion changes.
Lubrication and Its Role in Smooth Movement
Proper lubrication is essential for maintaining smooth motion in lead screw systems. Lubrication reduces friction between the lead screw and the nut, helping to prevent wear and tear while improving efficiency. In high-precision applications, maintaining consistent lubrication is critical to ensure the long-term performance of the lead screw system.
While lead screws are widely used, they are not the only option for achieving linear motion. It is important to understand how lead screws compare to other linear actuators, such as ball screws and belt drives.
Lead Screw vs. Ball Screw
Ball screws are similar to lead screws but use ball bearings between the nut and the screw to reduce friction and improve efficiency. Ball screws are often preferred in applications requiring very high precision and load capacity. However, lead screws are more cost-effective and simpler to maintain, making them ideal for less demanding applications.
Lead Screw vs. Belt Drive
Belt drives, while efficient and capable of high speeds, typically do not offer the same level of precision as lead screws. Lead screws excel in applications where precise control of movement is essential, such as in CNC machines and medical devices, whereas belt drives are more suitable for applications where speed is prioritized over precision.
Pros and Cons in Terms of Precision and Cost
Lead screws are often chosen for their ability to provide precise movement at a lower cost compared to other linear actuators. They are ideal for applications where moderate loads and precision are required. However, for applications involving very high speeds or loads, ball screws or other systems may be more appropriate.
Lead screws are used in a variety of applications that demand high precision:
CNC Machines
CNC machines rely on lead screws for accurate positioning of the tool or workpiece. The precision of the lead screw ensures that the machine operates smoothly and delivers consistent results.
Medical Imaging Devices
Medical imaging devices, such as MRI machines or CT scanners, require precise motion control to position the patient or imaging components. Lead screws provide the necessary accuracy for these critical devices.
Semiconductor Manufacturing Equipment
The semiconductor industry requires highly precise motion control for the production of microchips. Lead screws are often used in semiconductor manufacturing equipment to ensure that components are positioned with extreme accuracy.
In conclusion, lead screws are indispensable components in linear motion systems that require precise control. By focusing on thread design, materials, nut fit, and manufacturing tolerances, lead screws can achieve exceptional precision in a wide range of applications. At Sollwin Enterprise Co., Ltd., we take pride in producing high-quality lead screws that offer reliable and accurate motion for even the most demanding industries.
If you’re looking for a dependable lead screw for your application, contact us today to learn more about our products and how they can meet your needs.
