A well-designed sheet metal enclosure is crucial for ensuring strength, functionality, and cost-effectiveness in electronic devices. In this article, we'll explore the fundamentals of sheet metal enclosure design. You'll learn about the materials used, key design tips, and best practices to ensure durability and optimal performance. Let's dive into the essentials of creating the perfect sheet metal enclosure.

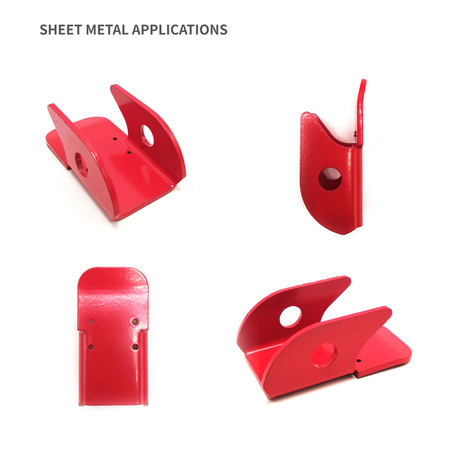

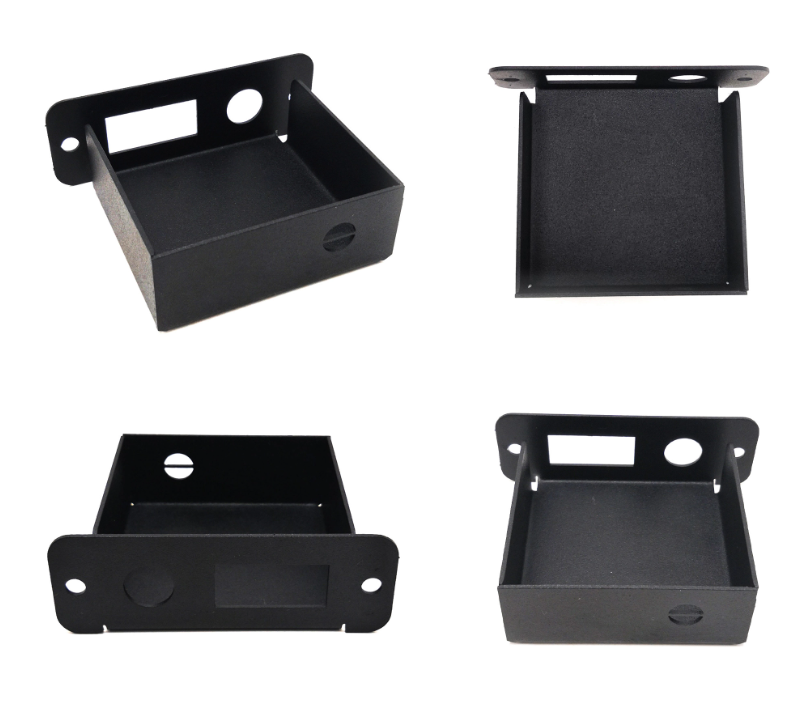

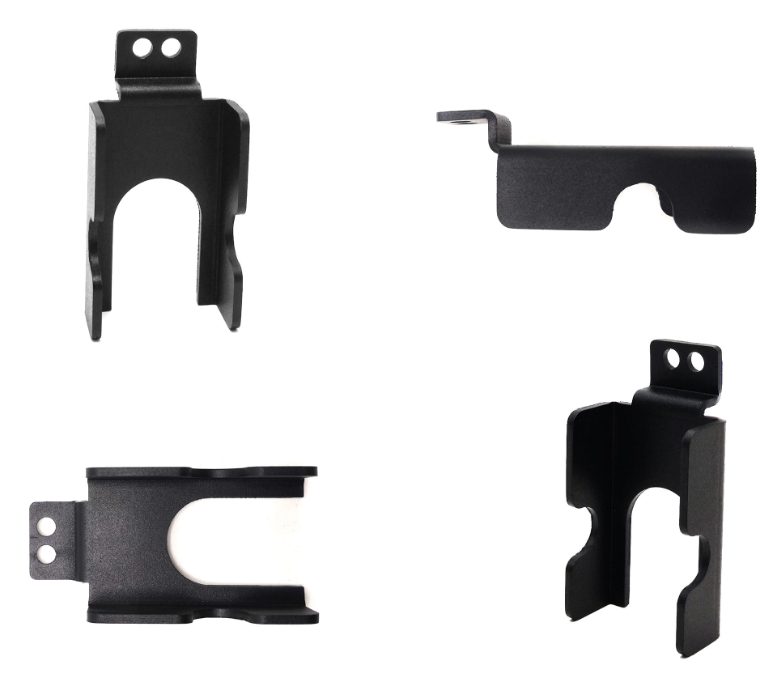

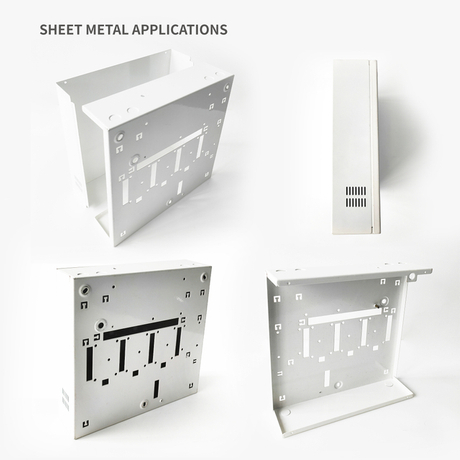

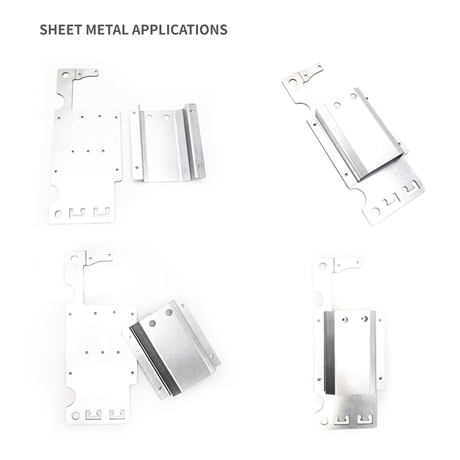

A sheet metal enclosure is a protective casing made from thin metal sheets, designed to house electronic and mechanical components. These enclosures protect sensitive parts from environmental factors like dust, moisture, and temperature changes.
Sheet metal enclosures are widely used in electronics, automotive, telecommunications, and industrial sectors to protect components like circuit boards, sensors, and control systems from environmental hazards.
These enclosures offer protection from external contaminants, physical damage, and environmental factors, extending the lifespan and reliability of sensitive equipment.
Choosing the right material is key to ensuring the enclosure's durability and performance. Common materials include:
● Aluminum: Lightweight, corrosion-resistant, and ideal for outdoor applications, but not as strong as steel.
● Stainless Steel: Strong, durable, and resistant to corrosion, making it suitable for harsh environments, though it's heavier and more expensive.
● Galvanized Steel: Affordable and corrosion-resistant with a zinc coating, but it can wear in extreme conditions.
● Copper: Excellent electrical conductivity, soft, and costly, often used in specialized electrical applications.
The choice of material depends on factors like strength, corrosion resistance, cost, and the specific environmental conditions the enclosure will face. Temperature, moisture, chemicals, and humidity all affect material durability. For instance, corrosive environments may require stainless or galvanized steel, while outdoor conditions often call for aluminum.
Proper sizing is essential for the enclosure to function efficiently. You must ensure the internal components fit properly and that there's enough space for airflow. Common shapes include folded box, F-shape, U-shape, and L-shape, each designed for different internal layouts and access needs. Enclosures should be easy to service, with accessible mounting points for components.
Additionally, structural integrity is crucial. Reinforcement techniques like ribbing, flanges, and gussets add strength without significantly increasing weight. Striking the right balance between strength and weight ensures durability and efficiency.
For many applications, electrical conductivity is a key consideration. Sheet metal enclosures provide excellent electromagnetic interference (EMI) shielding, protecting sensitive circuits from noise and interference. Proper grounding is also essential to ensure safety and effective shielding, making it critical to account for these factors in the design process.
Material thickness plays a crucial role in determining the strength, weight, and durability of the enclosure. Thicker materials offer increased strength and resistance to impact, but they also add weight and may be more challenging to work with. On the other hand, thinner materials are lighter and easier to handle, but they might not offer the same protection.
Understanding sheet metal gauges is essential. A higher gauge number means a thinner material. Choose the right gauge based on the balance of strength, weight, and cost for your design needs.
Precision is key during the fabrication process. Dimensional tolerances ensure that parts fit together perfectly during assembly. Even small variations can lead to issues like improper fit, difficulty during assembly, or functional problems. To maintain accuracy, always define the appropriate tolerances in your CAD drawings and ensure that the fabrication process is carried out with precision.
Common issues include tight clearances and misalignment. These can be avoided by considering the ease of manufacturing and providing enough space for components during the design stage.
Cutouts serve various purposes, such as providing space for connectors, vents, and switches. However, they can compromise the structural integrity of the enclosure if not designed properly. The key is to design cutouts that are functional while maintaining the strength of the enclosure.
Be mindful of tolerances around the cutouts to avoid distortion during fabrication. Ensure that the cutout locations and sizes are well-planned, allowing for proper airflow or access while keeping the overall design stable.
Choosing the right fasteners is crucial for ensuring secure and reliable assembly. Common options include self-clinching nuts, bolts, and rivets. Each type of fastener serves a specific purpose, such as securing components or providing quick access for maintenance.
Self-clinching fasteners are ideal for sheet metal enclosures, as they create secure threads without the need for additional hardware. Select fasteners based on the material, size, and required strength for your application.
Maintaining a consistent bend radius is vital for preserving the structural integrity of the enclosure. A proper bend radius ensures that the material doesn't fracture or experience undue stress during bending. The radius should match the material thickness to avoid fractures.
When designing, ensure you calculate the bend radius based on the material's thickness. Use CAD software to verify the calculations and ensure the bends maintain the strength of the enclosure. This will result in a smooth finish and a more durable enclosure.
Powder coating is a popular finishing technique where a dry powder is applied electrostatically to the surface of the metal and then cured in an oven. This process enhances the enclosure's durability by making it resistant to scratches, fading, and chemicals.
Powder coating also improves aesthetic appeal by offering various finishes, such as glossy, matte, or textured options. These finishes not only protect the surface but also provide a sleek and professional look.
Anodizing is an electrochemical process used to treat aluminum surfaces, creating a hard, durable oxide layer. This layer significantly enhances corrosion resistance, making it ideal for outdoor or high-humidity environments.
Anodizing also increases the surface hardness of aluminum, improving its wear resistance. The process gives the metal a clean, finished appearance while maintaining its structural integrity.
Chromate conversion coating is used primarily for aluminum and other metals to improve corrosion resistance. It involves applying a chemical treatment to the metal surface, creating a protective layer.
This coating not only protects the metal from corrosion but also enhances paint adhesion. It is commonly used in aerospace and automotive applications, where durability is critical.
Digital printing and silkscreening are techniques used for branding, labeling, and adding designs to sheet metal enclosures. Digital printing allows for high-quality, detailed graphics, while silkscreening is ideal for simpler, bold designs.
These techniques improve the professional appearance of the enclosure, making it easily identifiable and adding a polished touch to the product.
Nickel and tin plating are commonly used to improve the surface properties of sheet metal enclosures. Nickel plating offers excellent corrosion resistance and enhances the metal's overall durability. Tin plating improves electrical conductivity and is often used in electronics.
These surface treatments not only enhance the functional properties but also improve the aesthetic appeal of enclosures. Proper finishing ensures both longevity and a professional look.
Prototyping is an essential step in sheet metal enclosure design. By creating early models, designers can test their concepts before moving to mass production. Prototypes allow for hands-on evaluation of the design, helping to identify potential flaws or areas for improvement.
These early models also provide an opportunity to refine the design and make necessary adjustments to improve manufacturability, ensuring the final product meets both functional and aesthetic requirements.
Validation testing ensures that the sheet metal enclosure will perform well under real-world conditions. Testing is crucial for confirming the enclosure’s strength, resistance to environmental factors, and overall functionality.
There are several types of testing for sheet metal enclosures:
● Structural Integrity Testing: Ensures the enclosure can withstand impacts and other mechanical stresses.
● Environmental Resistance Testing: Assesses how the enclosure performs in different environments, including extreme temperatures, humidity, and exposure to chemicals.
● Functionality Testing: Verifies that all components work as expected, such as connectors, hinges, and vents.
These tests help guarantee that the enclosure will protect the internal components effectively and perform well in its intended environment.
This article covered key elements of sheet metal enclosure design, including material selection, structural integrity, and finishing techniques. Incorporating these tips ensures effective, durable enclosures. Understanding material properties and structural strength is essential for success in the design process.
For expert design and fabrication, contact Sollwin to explore more information.
A: The best material depends on the application. Aluminum is lightweight and corrosion-resistant, while stainless steel offers high strength and durability for harsh environments. Galvanized steel is cost-effective, and copper is ideal for electrical conductivity.
A: The right thickness depends on strength, weight, and durability requirements. Thicker materials provide more strength but add weight, while thinner materials are lighter but less protective.
A: A consistent bend radius ensures the material doesn't fracture and maintains the enclosure's structural integrity. It helps in achieving smooth, durable bends.
A: Powder coating enhances durability, providing resistance to scratches, fading, and chemicals. It also offers a professional finish with options like glossy, matte, and textured surfaces.
