What is the thumb rule for sheet metal design?

The primary thumb rule for sheet metal design is to maintain a uniform wall thickness throughout the part and to ensure that bend radii, hole diameters, and clearance distances are proportional to that material thickness, typically adhering to the 1:1 or 2:1 ratio for feature placement relative to the bend.

By following these fundamental design principles, manufacturers can significantly reduce waste, shorten production lead times, and enhance the overall structural integrity of the final product. Whether you are designing a simple enclosure or a high precision custom terminal bracket for cabinet racks, these guidelines will ensure your designs are manufacture ready from the very first prototype.

This guide provides a comprehensive overview of the design rules that govern successful sheet metal fabrication, covering everything from material selection to advanced geometric tolerances.

Content Directory

Importance of Uniform Wall Thickness

The golden rule of sheet metal design is to maintain a constant material thickness throughout the entire part design, as varying gauges complicate the fabrication process and weaken the structure.

Consistency in wall thickness is the most critical factor in ensuring a predictable manufacturing outcome. When a design utilizes a single material gauge, it allows the shop floor to maintain consistent pressure during forming and minimizes the risk of uneven stress distribution. Deviating from a uniform thickness often necessitates complex secondary operations, such as welding different thicknesses together, which inevitably drives up the unit cost and increases the likelihood of part failure.

Engineers must also consider how thickness impacts the overall weight and durability of components like a high durability metal rack bracket. Using a standard gauge allows for easier sourcing of raw materials and standardizes the tooling required for bending and punching. When a design requires reinforcement, it is usually more efficient to add a flange or a rib rather than increasing the material thickness of the entire part.

Furthermore, uniform thickness ensures that the bend allowance remains consistent across all flanges. If a part has varying thicknesses, calculating the bend deduction becomes significantly more difficult, leading to inaccuracies in the final dimensions. By sticking to a uniform gauge, designers simplify the unfolding process in CAD software, ensuring that the 2D flat pattern matches the 3D geometry perfectly every time.

Mastering Bend Radii and Relief

To avoid cracking or material fatigue during the bending process, the inner bend radius should be equal to or greater than the thickness of the material being formed.

Bend radii are the heart of sheet metal geometry. If the radius is too sharp, the material will experience extreme stress on the outer surface, leading to micro cracks or complete failure. Conversely, if the radius is too large, it may consume unnecessary material and interfere with other design features. As a rule of thumb, for most mild steels and aluminum, the inside bend radius should be at least equal to the material thickness.

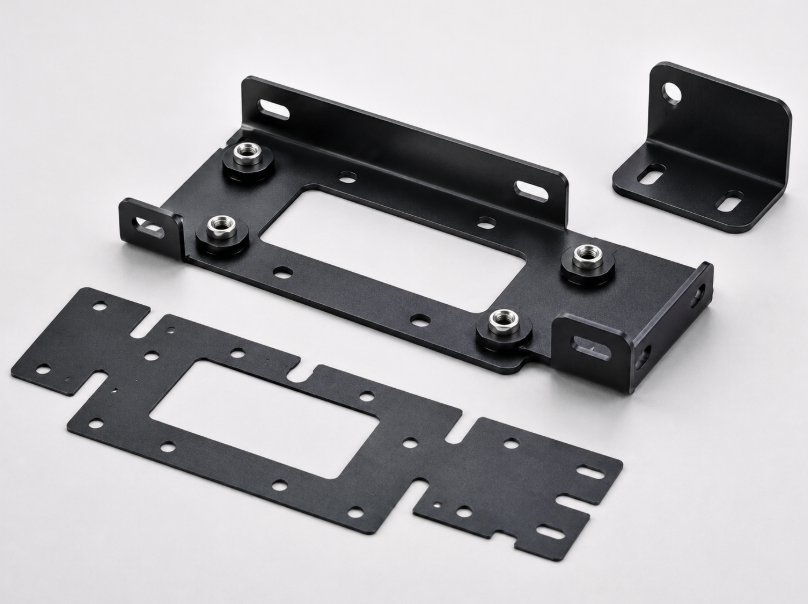

Bend relief is another essential concept that prevents the metal from tearing during the bending process. When a bend is located near a vertical edge, the material will naturally want to pull and distort. By adding a small cutout or relief at the corner of the bend, the designer allows the metal to deform cleanly without tearing the adjacent side wall. This is particularly important for components such as a precision engineered sheet metal terminal bracket, where clean, square edges are required for mounting into a cabinet enclosure.

Designers should always aim to orient bends parallel to the grain of the metal whenever possible. If a bend must be made perpendicular to the grain, it requires a larger radius to prevent cracking. By consulting with your manufacturer about the specific grain direction of your sheet stock, you can design parts that are not only structurally sound but also easier to form without sacrificing precision or quality.

Hole and Slot Design Best Practices

Holes and slots must be located at a distance of at least two times the material thickness from any bend, edge, or other feature to ensure that they do not deform during the forming process.

Placing holes too close to a bend is a common design error that results in teardrop shaped holes. When the material is bent, the area around the bend experiences significant tension and compression; if a hole is present in that zone, it will be pulled out of shape. To maintain structural integrity and cosmetic appeal, always keep features at a distance from bends that is at least twice the material thickness plus the bend radius.

When designing for punching, the minimum diameter of a hole should never be smaller than the thickness of the material. Attempting to punch a small hole in thick material subjects the punch tool to extreme lateral forces, which can lead to premature tool breakage. If you require a hole smaller than the material thickness, consider drilling or laser cutting instead of punching.

Furthermore, ensure that the spacing between multiple holes is sufficient. As a general rule, the space between the edges of two holes should be at least as large as the material thickness. This provides enough material between the features to prevent the web from collapsing or warping during the high pressure punching operation. These guidelines are crucial for ensuring that your fabricated parts fit perfectly into their final assemblies.

Selecting the Right Material

Material selection dictates the design parameters, as different metals possess varying ductility, yield strength, and work hardening characteristics that must be accounted for during the design phase.

Choosing the right material is not just about strength; it is about how the material reacts to the manufacturing processes. Cold rolled steel is highly common due to its excellent formability and low cost. Aluminum, while lighter and more corrosion resistant, may require larger bend radii to prevent cracking due to its lower ductility. Stainless steel is even more demanding, as it has a higher work hardening rate, requiring more force to bend and a sharper tool maintenance schedule.

Consider the following factors when selecting your material:

• Ductility: High ductility materials are easier to form into complex shapes without cracking.

• Yield Strength: High strength materials require more force and can cause more springback after bending.

• Environmental Requirements: Ensure the material can handle the intended operating environment, especially regarding oxidation and moisture resistance.

By aligning the material properties with the design, you reduce the likelihood of springback, which occurs when the material tries to return to its original flat state after being bent. Designers often compensate for springback by slightly over bending the part, but selecting the right alloy can minimize this necessity, resulting in a more consistent and cost effective production run.

Tolerances and Manufacturing Reality

Designing with realistic tolerances is the most effective way to control costs, as excessively tight tolerances force unnecessary secondary operations and reduce manufacturing yield.

In the world of sheet metal, precision comes at a price. While machining parts can achieve tolerances in the range of 0.001 inches, sheet metal is a forming process, and tolerances are naturally broader. Trying to enforce machined level tolerances on a bent sheet metal component is a recipe for high scrap rates and increased costs. Instead, specify tolerances that reflect the actual function of the part.

Standard industry practice is to allow for variations that reflect the manufacturing equipment capabilities, typically around plus or minus 0.010 to 0.030 inches depending on the complexity of the bends. For mounting holes, loose tolerances are usually acceptable, while for mating surfaces in an assembly, tighter tolerances might be needed. Use the following approach to manage expectations:

• Define Critical Dimensions: Clearly label only the essential dimensions that affect the assembly functionality.

• Allow for Variation: Keep non critical dimensions within the standard tolerance range of the fabrication process.

• Coordinate with the Shop: Always involve the manufacturer early to determine what tolerances are achievable without special tooling or extra steps.

By understanding the inherent capabilities of your manufacturing partner, you can design parts that are reliable and functional while maintaining a competitive price point.

Designing for Efficiency and Cost

Optimizing a sheet metal design for cost involves minimizing material waste, reducing the number of setups, and simplifying the assembly process.

The cost of a sheet metal part is largely determined by material usage and the number of operations required to finish it. Nesting is the process of arranging parts on a flat sheet of metal to minimize the amount of scrap left over. Designers who create parts with standard dimensions and shapes are much easier to nest, which drastically reduces raw material costs.

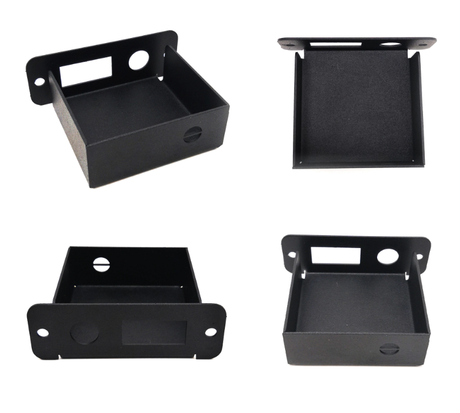

Beyond material waste, consider the number of times a part must be handled. Each additional bend or operation like welding or tapping adds labor costs. By designing a part that can be folded from a single flat pattern, such as an enclosure that utilizes tabs to self align, you eliminate the need for expensive jigs and welding time. This design philosophy is clearly visible in high quality components, where the geometry itself provides the strength and alignment necessary for the assembly.

Ultimately, the best design is one that balances form, function, and manufacturability. By adhering to these thumb rules, you ensure that your design is not only elegant but also robust enough to be produced efficiently at scale, satisfying both the functional requirements of your project and the bottom line requirements of your organization.
