The demand for precision-engineered components in industrial infrastructure has seen a significant rise, particularly as data centers, telecommunications, and power distribution systems expand globally. Sheet metal brackets serve as the fundamental structural support within these systems, ensuring that sensitive electronic equipment remains secure and functional under various environmental stresses.
A sheet metal bracket is a custom-engineered structural component designed to hold, join, or support parts within an assembly, specifically optimized for applications like Cabinet Rack Metal Enclosure systems to ensure durability and space efficiency.
Navigating the complexities of sheet metal design requires a deep understanding of fabrication processes, material properties, and tolerance standards. This comprehensive guide provides an in-depth analysis of the design and manufacturing of the Sheet metal terminal bracket, offering engineering insights and practical tips for optimizing your next project.
What Are Sheet Metal Brackets?
How Our Sheet Metal Fabrication Shop Fabricates Brackets
Common Bracket Types

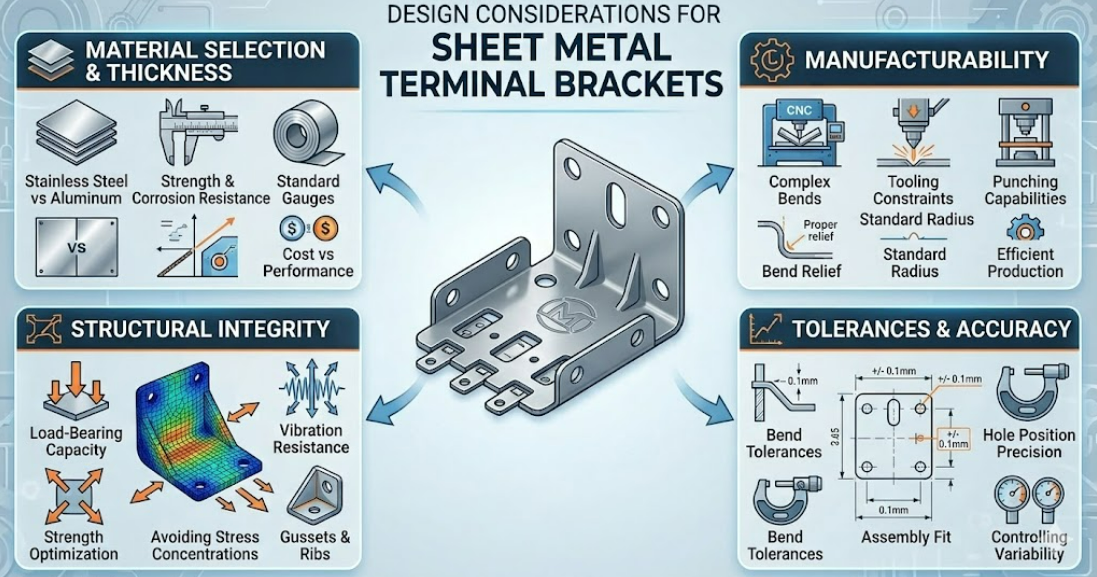

Design Considerations for Custom Brackets
Recommended Default Sheet Metal Tolerances
Sheet Metal Bracket Design FAQ

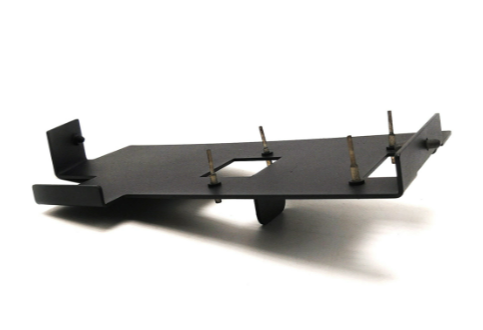

Sheet metal brackets are versatile structural elements fabricated from thin, flat pieces of metal that are cut, bent, and formed into specific shapes to provide mechanical support or connection points between different components.

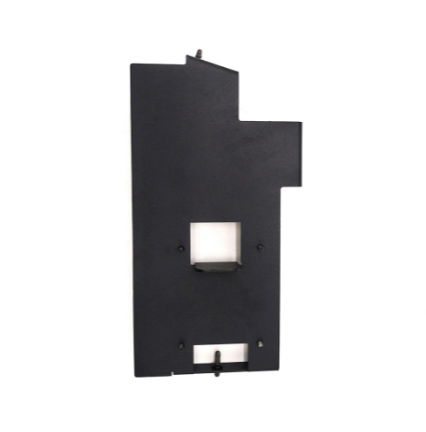

In the context of industrial housing, the Sheet metal terminal bracket plays a pivotal role. These specialized brackets are designed specifically for the Cabinet Rack Metal Enclosure industry, where they serve as the primary interface for mounting electrical terminals, busbars, and internal hardware. Without these precise components, the structural integrity of a server rack or an electrical cabinet would be compromised, leading to potential hardware failure or safety hazards.
The utility of these brackets extends across various sectors including aerospace, automotive, and medical technology. However, in the B2B manufacturing space, their most critical application is providing a bridge between the enclosure's frame and the internal electronic sub-assemblies. A well-designed Sheet metal terminal bracket must account for both the weight of the supported component and the vibration or thermal expansion it might encounter during operation.
When designing for a Cabinet Rack Metal Enclosure, the choice of bracket often dictates the overall efficiency of the assembly process. Modern designs prioritize modularity, allowing for rapid installation and maintenance. By utilizing high-quality sheet metal, engineers can achieve a high strength-to-weight ratio, ensuring that the enclosure remains lightweight yet capable of supporting heavy industrial loads.

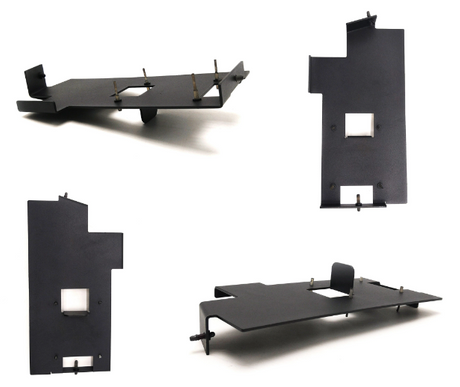

The fabrication of a Sheet metal terminal bracket involves a multi-stage manufacturing workflow that utilizes advanced CNC machinery to transform raw metal sheets into high-precision structural components.
The first stage of production is precision cutting, where the flat pattern of the bracket is extracted from a large sheet of metal. Most modern shops utilize fiber laser cutting or waterjet technology to ensure that the edges of the Sheet metal terminal bracket are clean and meet tight dimensional tolerances. This process is highly automated, allowing for maximum material utilization and minimal waste, which is essential for maintaining cost-effectiveness in large-scale B2B orders.
Forming, or bending, is the process where the flat metal piece is shaped into its final three-dimensional geometry using a press brake. For a Sheet metal terminal bracket used in a Cabinet Rack Metal Enclosure, precise bend angles are crucial for ensuring that the bracket fits perfectly within the predetermined rack space. CNC press brakes allow for consistent repeatability, ensuring that every bracket in a production run is identical in its angular accuracy.
Punching is utilized to create holes, slots, and other internal features within the bracket. While laser cutting can also create holes, CNC punching is often faster and more economical for high-volume production of the Sheet metal terminal bracket. This stage also allows for the creation of specialized features like countersinks or lanced tabs, which are frequently required for mounting hardware in complex Cabinet Rack Metal Enclosure designs.
In cases where a bracket requires multiple pieces to be joined or where extra reinforcement is needed, welding is employed. Techniques such as TIG (Tungsten Inert Gas) or MIG (Metal Inert Gas) welding are common for stainless steel or aluminum brackets. For the Sheet metal terminal bracket, spot welding is often the preferred method due to its speed and ability to create strong, localized joints without distorting the overall shape of the enclosure component.
Various geometries of sheet metal brackets exist to solve specific mechanical challenges, ranging from simple 90-degree angles to complex offset configurations designed for tight spatial constraints.
The L-bracket is the most common variety, consisting of two flanges at a 90-degree angle. These are frequently used as the primary mounting Sheet metal terminal bracket within a Cabinet Rack Metal Enclosure. They are ideal for reinforcing corners and providing a simple attachment point for horizontal shelves or vertical rails.
U-brackets feature three sides and are designed to "cradle" a component. In industrial enclosures, these are often used to secure cylindrical items or to provide a dual-sided mounting point that increases the load-bearing capacity of the assembly. Their symmetrical design helps distribute stress evenly across the enclosure's frame.
Z-brackets provide an offset between two parallel surfaces. This is particularly useful in a Cabinet Rack Metal Enclosure when a component needs to be mounted at a different depth than the frame itself. The Z-configuration allows for air circulation behind the mounted hardware, which is critical for thermal management in high-density server environments.
Bracket Type | Best Application | Strength Level |
L-Bracket | Corner reinforcement / General mounting | Medium |
U-Bracket | Heavy-duty component support | High |
Z-Bracket | Offset mounting / Thermal clearance | Medium |
Gusseted | High-vibration environments | Very High |
Effective bracket design requires a balance between material selection, geometric constraints, and manufacturing capabilities to ensure the Sheet metal terminal bracket performs reliably over its lifespan.
The choice of material for a Sheet metal terminal bracket depends heavily on the weight of the equipment it will support within the Cabinet Rack Metal Enclosure. Cold-rolled steel is often chosen for its balance of cost and strength, while stainless steel is preferred for environments prone to corrosion. Aluminum offers a lightweight alternative for mobile racks but requires thicker gauges to match the structural rigidity of steel counterparts.
Flange length must be sufficient to accommodate the bending tool and provide a stable mounting surface. A general rule of thumb is that the minimum flange length should be at least four times the material thickness. If the flange is too short, the metal may slip during the forming process, resulting in inaccurate dimensions for the Sheet metal terminal bracket.
Holes should be placed at a distance from the bend line to avoid deformation. When a hole is too close to a bend, it can become elongated or "stretched" as the material moves. For high-precision Cabinet Rack Metal Enclosure applications, maintaining a distance of at least twice the material thickness from the edge of the hole to the start of the bend radius is recommended.
Minimizing the number of bends reduces manufacturing time and potential points of failure. Additionally, designing bends to be in the same direction or on the same plane can significantly lower the complexity of the setup for the press brake. This optimization makes the Sheet metal terminal bracket easier to produce and more cost-effective for the end user.
Surface finishing is the final step in protecting the Sheet metal terminal bracket from environmental factors. For components used in a Cabinet Rack Metal Enclosure, the following options are common:
Powder Coating: Provides a thick, durable layer of protection and is available in various colors to match branding.
Zinc Plating: Offers excellent corrosion resistance through a sacrificial layer, ideal for industrial indoor use.
Anodizing: Specifically for aluminum brackets, this hardens the surface and provides a sleek, professional finish.
Tolerances define the allowable deviation from the nominal dimensions and are essential for ensuring that the Sheet metal terminal bracket fits correctly within the assembly without manual adjustment.
Standard industry tolerances for sheet metal fabrication typically fall within +/- 0.005 inches for laser cutting and +/- 0.010 to 0.015 inches for bending. When designing for a Cabinet Rack Metal Enclosure, it is vital to communicate these requirements clearly to the fabrication shop. Over-specifying tight tolerances can lead to unnecessary increases in production costs, while loose tolerances may result in a Sheet metal terminal bracket that does not align with the mounting holes of the enclosure.
In addition to dimensional tolerances, flatness and squareness are also critical factors. A bracket that is slightly warped will create stress on the electronic components it supports. Quality control teams use specialized gauges and coordinate measuring machines (CMM) to verify that every Sheet metal terminal bracket meets the rigorous standards required for modern industrial applications.
Consistency in material thickness is another variable. While manufacturers provide "nominal" gauges, there is always a slight variation in the actual thickness of the metal sheet. A professional fabrication shop will adjust their bending calculations based on the specific batch of material to ensure the final Sheet metal terminal bracket remains within the specified tolerance range.
1、What is bend relief and why is it necessary?
Bend relief consists of small cutouts made at the intersection of two bends to prevent the material from tearing or bulging during the forming process. In the production of a Sheet metal terminal bracket, including bend relief in the CAD design ensures a cleaner look and prevents structural weaknesses in the corners of the Cabinet Rack Metal Enclosure assembly.
2、Which material is best for high-temperature environments?
Stainless steel, particularly grades like 304 or 316, is the superior choice for brackets exposed to high temperatures due to its high melting point and resistance to oxidation. When a Sheet metal terminal bracket is installed in a high-heat section of a Cabinet Rack Metal Enclosure, using stainless steel ensures that the bracket will not lose its structural integrity over time.
3、How can I reduce the cost of my custom bracket order?
Cost reduction can be achieved by standardizing hole sizes, using common material gauges, and simplifying the geometry to reduce the number of required bends. By designing a Sheet metal terminal bracket that can be produced using standard tooling and high-speed processes like CNC punching, you can significantly lower the per-unit cost for large B2B production runs.
