Have you ever wondered how electronics survive harsh environments? The secret lies in the design of PCB enclosures. These metal shields protect against dust, moisture, and impacts. In this post, you'll learn why PCB enclosure design is crucial for electronics protection, ensuring reliability and safety in various settings.
A PCB enclosure is a protective casing designed to house printed circuit boards and their electronic components. Its main purpose is to shield these sensitive parts from external factors that could cause damage or malfunction. These factors include dust, moisture, chemicals, temperature changes, and physical impacts. The enclosure also helps prevent electrical shorts by keeping the PCB isolated from conductive objects or surfaces.
Besides protection, PCB enclosures organize internal components, support mounting, and provide a framework for additional features like connectors, switches, or cooling elements. They are essential in ensuring the reliability and longevity of electronic devices, especially in demanding environments such as industrial settings, outdoor installations, or automotive applications.
PCB enclosures offer several important features and functions that contribute to electronics protection:
Environmental Protection: They block dust, moisture, and corrosive substances from reaching the PCB. This reduces the risk of corrosion, short circuits, or component failure due to contaminants.
Mechanical Protection: Enclosures absorb shocks and vibrations, preventing physical damage to delicate components. This is crucial when devices are subject to movement or impacts.
EMI/RFI Shielding: Many enclosures are made from metal or have conductive coatings that shield the PCB from electromagnetic interference (EMI) and radio frequency interference (RFI). This shielding maintains signal integrity and prevents malfunction caused by external electromagnetic noise.
Safety: Enclosures prevent accidental contact with live electrical parts. This protects users and maintenance personnel from electrical shocks and reduces fire hazards.
Organization: They often include mounting rails, brackets, and cable management features that keep components securely in place and wiring neat. This facilitates easier assembly, maintenance, and troubleshooting.
Customization: Enclosures can be tailored to fit different PCB sizes and shapes. They may have cutouts for connectors, ventilation slots, or mounting points for additional hardware.
Thermal Management: Some designs incorporate vents, fans, or heat sinks to dissipate heat generated by components, ensuring the device operates within safe temperature limits.
Sealing: For harsh environments, enclosures can be sealed with gaskets or O-rings to make them dust-tight or water-resistant, meeting standards such as IP ratings.
Mounting Options: They can be designed for wall mounting, rack installation, or DIN rail attachment, depending on the application.
Material Selection: Common materials include plastic, aluminum, steel, and fiberglass. Each offers different benefits in terms of strength, weight, corrosion resistance, and cost.
By combining these features, PCB enclosures play a vital role in protecting electronics from damage, ensuring safety, and supporting device functionality.
Tip: When selecting a PCB enclosure, prioritize materials and features that match your device’s operating environment to maximize protection and reliability.
Choosing the right material for a PCB enclosure is essential for protection, durability, and functionality. The most common materials include:
Plastic: Lightweight and cost-effective. Offers good insulation and corrosion resistance. Ideal for indoor use or low-impact environments. However, plastic may lack mechanical strength and EMI shielding.
Aluminum: Popular for its balance of strength, weight, and corrosion resistance. Aluminum enclosures can be anodized to improve surface hardness and aesthetics. They also conduct heat well, aiding thermal management.
Steel: Known for high mechanical strength and durability. Steel enclosures are often coated or painted to prevent rust. They provide excellent EMI shielding due to their magnetic properties.
Stainless Steel: Offers superior corrosion resistance compared to regular steel. Ideal for harsh or outdoor environments. Stainless steel is heavier and more expensive but requires less maintenance.
Fiberglass: Non-conductive and corrosion-resistant. Fiberglass enclosures are lightweight and strong but may lack the mechanical robustness of metals. They offer good insulation and are suitable for specific industrial applications.
Each material suits different environments and design goals. For example, plastic fits consumer electronics, while steel or aluminum suits industrial or outdoor devices.

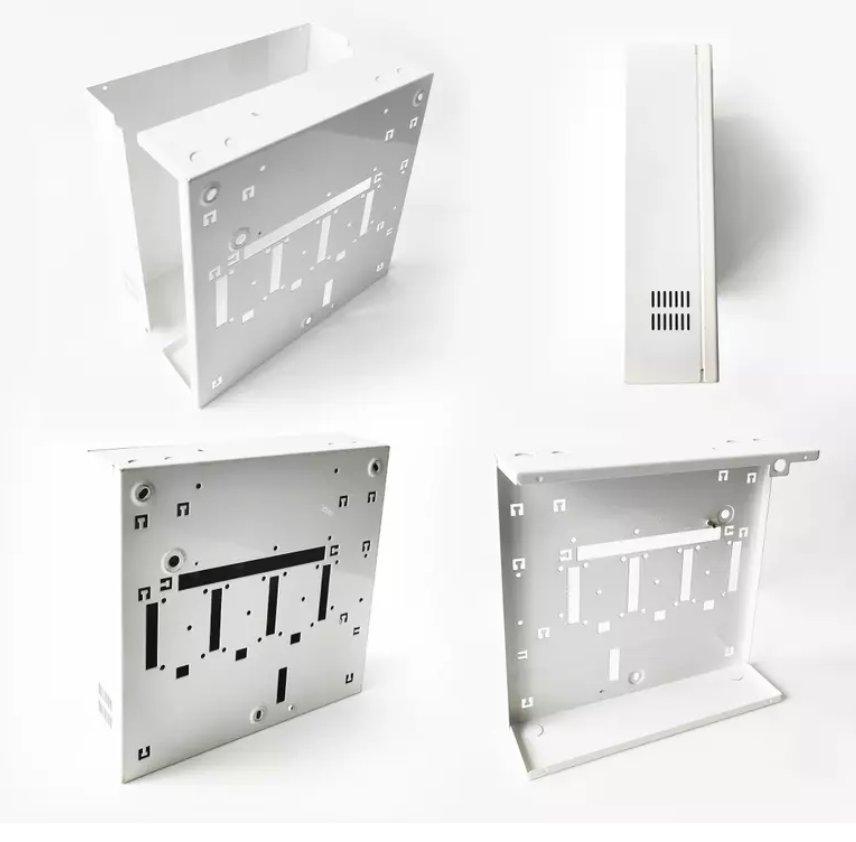

Metal enclosures, especially those made from aluminum or steel, provide several key benefits for PCB protection:
Superior Mechanical Protection: Metals absorb shocks and impacts better than plastics or fiberglass. This protects delicate components from damage during handling or operation.
Effective EMI/RFI Shielding: Metal enclosures naturally block electromagnetic and radio frequency interference. This preserves signal integrity and reduces the risk of electronic malfunction caused by external noise.
Thermal Conductivity: Metals conduct heat away from components, helping dissipate heat generated by the PCB. This can reduce the need for additional cooling solutions.
Durability and Longevity: Metal enclosures resist wear, corrosion (especially stainless steel or anodized aluminum), and environmental degradation. This extends device lifespan.
Customizability: Metals can be precisely cut, bent, and finished to create complex shapes and features. This allows for tailored designs that fit specific PCBs and application needs.
Grounding: Metal enclosures can serve as a grounding point, enhancing electrical safety and reducing interference risks.
Despite these advantages, metal enclosures may require insulation techniques to prevent electrical shorts between the PCB and enclosure surfaces. They are also typically heavier and costlier than plastic options.
Tip: When selecting enclosure materials, consider environmental exposure, required mechanical strength, EMI shielding needs, and thermal management to choose the best fit for your electronics protection goals.
Protecting electronics from environmental factors is a top priority in PCB enclosure design. The enclosure must shield the PCB from dust, moisture, chemicals, and temperature extremes. Dust and moisture can cause corrosion, short circuits, or component failures. To prevent these issues, enclosures often include seals such as gaskets or O-rings that provide airtight or watertight barriers. These seals help meet industry standards like IP (Ingress Protection) ratings, which classify the enclosure's resistance to solids and liquids.
Temperature control is also crucial. Enclosures should be designed to withstand the operating temperature range of the device. For outdoor or industrial applications, this may mean designing for extreme heat or cold, as well as rapid temperature changes. Materials and finishes must resist corrosion from chemicals or salt spray in harsh environments.
Mechanical protection safeguards the PCB and components from physical damage. The enclosure must absorb shocks, vibrations, and impacts that occur during transport, installation, or operation. This protection is vital for devices used in automotive, aerospace, or industrial fields where rough handling or vibrations are common.
Design features that enhance mechanical protection include:
Robust Material Choice: Metals like steel or aluminum offer high strength and impact resistance.
Structural Reinforcement: Internal ribs or thicker walls improve rigidity.
Shock Absorbers: Rubber mounts or foam inserts can isolate the PCB from vibrations.
Secure Mounting: Properly designed mounting points prevent PCB movement inside the enclosure.
Mechanical protection extends the lifespan of electronics by preventing cracks, broken solder joints, or dislodged components.
Electromagnetic interference (EMI) and radio frequency interference (RFI) can disrupt the operation of sensitive electronics. PCB enclosures often serve as shields to block or reduce these unwanted signals. This is especially important in environments with many electronic devices or wireless signals.
Metal enclosures provide natural EMI/RFI shielding due to their conductive properties. To maximize effectiveness:
Ensure Continuous Conductive Surfaces: Gaps or seams should be minimized or properly sealed.
Use Conductive Coatings: For plastic enclosures, conductive paints or metalized coatings can add shielding.
Ground the Enclosure: Connecting the enclosure to the system ground helps divert interference.
Include Shielding Gaskets: For doors or removable panels, conductive gaskets maintain shielding integrity.
Proper EMI/RFI shielding maintains signal quality, prevents data corruption, and ensures compliance with regulatory standards.
Tip: When designing your PCB enclosure, always tailor environmental seals, structural reinforcements, and EMI shielding to your device’s specific operating conditions for optimal protection and performance.
Modular designs in PCB enclosures allow for flexibility and adaptability. By using modular components, you can easily adjust the enclosure size or configuration to fit different PCB layouts or additional hardware. This approach helps reduce costs and speeds up production since you can reuse standard parts rather than creating a unique enclosure for every project.
Modules may include removable panels, interchangeable mounting brackets, or snap-in sections. These features make assembly and maintenance easier, allowing quick access to internal components without dismantling the entire enclosure. Modular designs also support scalability, letting you add or remove functional parts as needed.
Proper organization inside the enclosure is vital for both performance and safety. Arranging components logically prevents overcrowding, which can cause overheating, electrical shorts, or mechanical stress. Using mounting rails, brackets, or shelves helps secure PCBs and other parts firmly, reducing movement during operation or transport.
Cable management is another key aspect. Routing cables neatly with clips, ties, or channels prevents tangling and damage. It also simplifies troubleshooting and repairs by making connections easy to identify and access.
Safety improves when components are well-organized. Clear separation of high-voltage parts from low-voltage circuits reduces the risk of accidental shorts or shocks. Additionally, organized layouts enhance airflow, helping thermal management systems work effectively.
Tip: Design your PCB enclosure with modular parts and clear internal organization to simplify assembly, improve safety, and allow easy upgrades or repairs.
Managing heat inside a PCB enclosure is critical to keep electronic components running smoothly. Overheating can cause failures or shorten device lifespan. Designers often include ventilation features to promote airflow and cool the PCB.
Common ventilation options include:
Ventilation Slots or Louvers: These openings allow natural airflow, helping hot air escape and cooler air enter. Placement matters—slots near heat sources or exhaust points improve effectiveness.
Fans: Active cooling with fans forces air circulation inside the enclosure. Fans can be intake, exhaust, or both, depending on the design. They are useful for high-power electronics generating significant heat.
Heat Pipes or Heat Exchangers: These devices transfer heat from hot components to cooler areas or external surfaces. They enhance cooling without moving parts.
Filtered Vents: In dusty or harsh environments, vents may include filters to block contaminants while still allowing airflow.
Liquid Cooling: For very high-heat applications, liquid cooling systems circulate coolant through pipes or plates in contact with hot components. This method is more complex but highly effective.
Proper ventilation design balances cooling needs with environmental protection. Open vents improve airflow but may reduce sealing against dust or moisture. Designers must assess operating conditions and select ventilation methods accordingly.
Besides airflow, heat dissipation involves moving heat away from components and spreading it to prevent hotspots. Key techniques include:
Heat Sinks: Metal fins attached to heat-generating parts increase surface area, allowing heat to dissipate faster into the air. Aluminum is a common material for heat sinks.
Thermal Pads and Interface Materials: These materials fill gaps between components and heat sinks or enclosure walls, improving thermal conductivity.
Thermally Conductive Enclosure Materials: Metals like aluminum not only protect but also act as heat spreaders. Designing the enclosure to conduct heat away from the PCB helps maintain safe temperatures.
Thermal Vias and Planes: On the PCB itself, thermal vias and copper planes help transfer heat from components to other layers or the enclosure.
Phase Change Materials (PCMs): These materials absorb heat during phase transitions (e.g., solid to liquid), temporarily storing thermal energy and reducing temperature spikes.
Thermal Insulation: In some cases, insulating certain components prevents heat from affecting sensitive parts nearby.
Effective heat dissipation extends electronic device life and ensures reliable operation. Combining multiple techniques often yields the best results.
Tip: When designing PCB enclosures, integrate ventilation and heat dissipation features early to optimize cooling without compromising environmental protection or device safety.
When using metal enclosures, insulation is critical to prevent electrical shorts between the PCB and the metal surfaces. Kapton tape is a popular choice for this purpose. It’s a thin, adhesive polyimide film that can be cut to shape and applied directly to exposed solder joints or metal mounting points. Kapton insulators act as an effective barrier, stopping electrical contact while withstanding high temperatures and chemical exposure.
Kapton is easy to use in prototypes since you can apply it by hand. For production, die-cut Kapton films provide precise, repeatable insulation that covers entire PCB surfaces or specific areas. These films are cost-effective in volume and help protect against shorts caused by metal screws, brackets, or enclosure walls.
RTV (Room Temperature Vulcanizing) silicone offers another versatile insulation method. It works as an adhesive, sealant, or encapsulant. Applying RTV silicone spots can protect exposed leads or solder joints from touching metal parts. It bonds well to various surfaces, including metal and PCB substrates, creating a durable insulating layer.
For more comprehensive protection, RTV silicone can encapsulate the entire PCB inside the enclosure. This potting method shields the board from moisture, vibration, and contaminants. It also adds thermal mass, which can help moderate temperature changes. However, some RTV silicones may outgas or degrade under extreme conditions, so testing is recommended before use in sensitive applications.
Double-Sided Adhesive Tapes: High-strength tapes like VHB can insulate PCBs from metal surfaces while securing them in place. They offer a clean assembly method but require environmental testing for thermal stability and outgassing.
Conformal Coatings: Thin protective layers applied to PCBs can prevent corrosion and minor shorts. They’re less effective alone when the PCB mounts directly on metal, so they often complement other insulation methods.
Encapsulation: Fully potting a PCB in resin or silicone provides maximum protection against shorts, moisture, and mechanical stress. This method is ideal for harsh environments but limits access for repairs.
Tip: Use die-cut Kapton films or RTV silicone encapsulation to reliably insulate PCBs in metal enclosures, preventing shorts while enhancing durability and environmental resistance.
PCB enclosure design is crucial for safeguarding electronics, ensuring protection from environmental and mechanical threats. It offers features like EMI shielding, thermal management, and customization to improve device reliability. Proper design enhances safety and organization, preventing electrical shorts and facilitating maintenance. Selecting suitable materials and insulation techniques is vital for optimal performance. Sollwin Enterprise Co., Ltd. provides innovative PCB enclosures that deliver unmatched protection and durability, ensuring electronics operate flawlessly in diverse environments, offering exceptional value through their tailored solutions.
A: An enclosure metal refers to metal materials used in PCB enclosures, like aluminum or steel, providing protection, EMI shielding, and thermal management.
A: Enclosure metal designs enhance safety by preventing electrical shorts, offering mechanical protection, and shielding against EMI/RFI interference.
A: Metal enclosures offer superior mechanical protection, effective EMI shielding, and better thermal conductivity compared to plastic options.
A: Enclosure metal aids thermal management by conducting heat away from components, reducing the need for additional cooling solutions.
