Ever wondered what makes an enclosure metal design stand out? The secret lies in understanding both function and aesthetics. Designing sheet metal enclosures requires balancing practicality with visual appeal. In this post, you'll learn how to define enclosure purposes, choose materials, and follow best practices for optimal design and durability.
Start by clearly defining what your enclosure will protect or house. Is it a simple circuit board, a complex array of electronics, or perhaps sensitive instruments? The purpose guides every design choice. For example, an enclosure for outdoor electrical equipment needs weather resistance, while one for a display might prioritize visibility and style.
Think about the size and layout of components inside. How much space do they occupy? Will you need room for wiring, ventilation, or future upgrades? Proper spacing prevents overheating and makes maintenance easier. Sketching a rough internal layout helps visualize how parts fit and interact.

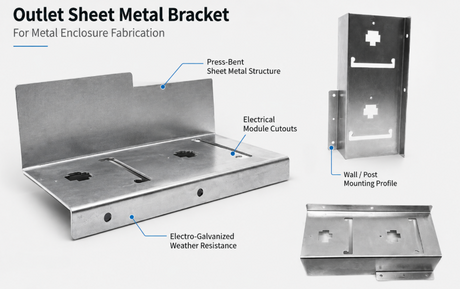

Add features that help your enclosure perform well:
Mounting points: Holes, slots, or tabs to secure components or the enclosure itself.
Cutouts: For switches, connectors, displays, or ventilation.
Access: Doors or removable panels for easy servicing.
Ventilation: Slots or perforations to manage heat.
Sealing: Gaskets or weatherstripping if protection against dust or moisture is needed.
Each feature should serve a clear purpose without complicating manufacturing.
An enclosure can be both functional and attractive. Consider the environment where it will be used:
Should it blend in or stand out?
What color or finish suits the brand or setting?
Will a window or transparent panel showcase internal components?
Keep aesthetics simple to avoid driving up costs or complicating fabrication. A clean, well-designed enclosure often looks more professional and builds trust in your product.
Tip: Clearly prioritize your enclosure’s functional needs first, then integrate aesthetic elements that complement rather than complicate the design.
Selecting the right material is a key step in designing sheet metal enclosures. The material affects strength, weight, corrosion resistance, cost, and even the enclosure’s appearance. Let’s explore common options and their benefits.
Sheet metal enclosures typically use steel, aluminum, or stainless steel. Some specialized applications call for titanium, copper, or brass. Each material suits different needs, so understanding their properties helps you make the best choice.
Steel is a popular choice because it’s strong and affordable. Carbon steel offers excellent durability, making it ideal for industrial or indoor enclosures. However, it’s prone to rust if exposed to moisture, so finishing is important. Powder coating or zinc plating protects steel from corrosion and adds color options.
For tougher environments, galvanized steel provides added rust resistance. Another steel variant, 4130 Chromoly, offers higher strength but costs more. Steel’s weight is higher than aluminum, so it may not be best for portable enclosures.
Aluminum is lighter than steel and naturally resistant to corrosion. This makes it perfect for outdoor enclosures or applications where weight matters. It can be anodized or powder coated to improve wear resistance and achieve a desired look.
Aluminum also conducts heat well, which can help cool electronics inside. However, it’s softer and less impact-resistant than steel, so it may not suit heavy-duty uses. Its price tends to be higher than steel but offers long-term benefits in durability and weight savings.
Stainless steel combines strength and excellent corrosion resistance without needing extra coatings. It’s a great choice for harsh environments or where the enclosure’s appearance matters. Stainless steel looks sleek and professional, often used in visible or decorative applications.
The downside is cost—stainless steel is more expensive than steel or aluminum. Also, it’s heavier than aluminum, so consider the trade-offs based on your project’s priorities.
For specialized needs, titanium offers high strength, low weight, and corrosion resistance, often used in aerospace. It is costly but ideal for extreme conditions.
Copper and brass provide unique aesthetics and excellent electrical and thermal conductivity. They are less common but useful when heat dissipation or decorative appeal is important.
Tip: Match your enclosure material to your environment and functional needs—prioritize corrosion resistance for outdoor use, strength for heavy-duty applications, and weight savings for portable designs.
Most sheet metal enclosures come in straightforward shapes like rectangles, squares, or simple boxes. These shapes are easy to design and manufacture, making them cost-effective and quick to produce. Rectangular boxes fit many applications, from housing circuit boards to protecting industrial equipment. L-shapes, U-shapes, and other basic forms also work well when you need to wrap around existing components or fit into tight spaces.
Choosing simple shapes helps reduce the number of parts and joints, which improves strength and lowers assembly time. It also makes it easier to create flat patterns for cutting and bending, speeding up production.
Sometimes, your enclosure needs a unique shape to fit a specific function or space. For example, a display case might have angled panels or a curved front to showcase products. Fluid tanks often have custom shapes to guide liquids to drains or outlets.
When designing unusual shapes, keep in mind:
Complex bends or curves increase fabrication difficulty and cost.
Sharp internal corners may be impossible to bend without special tooling.
Features near bends can distort during forming.
Assembly might require more fasteners or welding.
Use 3D CAD software to model the flat layout and check for bend feasibility. If your design can’t be flattened properly, it may need revision.
The shape you choose affects manufacturing steps like cutting, bending, and joining. Simple shapes with fewer bends reduce tooling time and material waste. They also minimize the risk of errors during assembly.
Adding flanges or tabs along edges creates convenient spots for welding, riveting, or fastening. This approach strengthens the enclosure and simplifies joining parts.
Avoid shapes that require tight bend radii or complex folds, as they may cause cracking or distortion. Also, consider how the shape influences access to internal components and ventilation.
Tip: Opt for simple, box-like shapes when possible to streamline fabrication and assembly, but use CAD tools to validate any unique shapes for manufacturability before finalizing your design.
Choosing the right gauge and thickness for your sheet metal enclosure is crucial. Thickness affects strength, durability, weight, and cost. Thicker metal offers more rigidity and protection, but adds weight and expense. Thinner metal reduces weight and cost but may lack the needed strength or stiffness for your application.
Consider how much load or stress the enclosure must handle. For example, an enclosure mounted on a vehicle exposed to vibrations needs thicker, sturdier metal. Conversely, a small electronics housing might require only a thin gauge to save weight and cost.
Environmental factors matter too. Outdoor enclosures might need thicker metal to resist dents or impacts. Also, the thickness determines how well the enclosure resists warping or bending during use.
Finding the right balance between strength, weight, and cost is key. Overbuilding your enclosure with unnecessarily thick metal can increase material costs and make handling difficult. Underbuilding risks damage and failure.
Start by defining your strength requirements. Then select the lightest gauge that meets these needs. This approach optimizes cost and performance.
For instance, aluminum offers good strength at lower thicknesses due to its material properties, allowing thinner gauges compared to steel for similar strength. But aluminum generally costs more per pound, so factor that into your decision.
Bend radius is the curve radius inside a bend on sheet metal. It’s tied closely to thickness. Thicker metal requires a larger bend radius to avoid cracking or deformation.
When designing your enclosure, account for the minimum bend radius of your chosen material and thickness. This ensures bends form cleanly without damage.
A common rule is the internal bend radius should be at least equal to the sheet metal thickness. For example, 0.05-inch thick metal should have a bend radius of at least 0.05 inches.
Ignoring bend radius can cause sharp corners to crack or distort, ruining your enclosure’s fit and finish. It also affects the flat pattern layout, changing dimensions after bending.
Make sure your CAD design includes accurate bend radii. This helps fabricators produce parts that fit together precisely and function as intended.
Tip: Always design sheet metal bends with a minimum radius equal to or greater than the material thickness to prevent cracking and ensure accurate folding.
Precision plays a critical role in sheet metal enclosure design. When parts fit tightly, the enclosure looks professional and functions well. Even small errors in dimensions can cause alignment problems, making assembly difficult or impossible. For example, holes for screws or cutouts for connectors must be placed exactly where needed. Otherwise, components won't fit or fasteners won't line up.
Accurate tolerances also affect sealing and protection. If panels don't fit properly, dust or moisture might get inside, damaging sensitive electronics. Precision ensures your enclosure meets functional and aesthetic standards, boosting reliability and customer satisfaction.
To achieve accurate tolerances, start by understanding the manufacturing processes involved. Each process, like laser cutting or bending, has its own tolerance range. Communicate with your fabricator early to learn these limits and design accordingly.
Here are key guidelines:
Specify realistic tolerances: Avoid overly tight tolerances that increase cost and complexity. Use standard tolerance ranges unless your application demands more precision.
Account for material behavior: Some metals expand, contract, or deform slightly during fabrication. Design features such as holes or slots with these changes in mind.
Use reference datums: Define clear reference points on your design to control dimensions consistently.
Include tolerance stacks: When multiple parts fit together, consider how individual tolerances add up. Design with enough clearance to accommodate cumulative variation.
Validate with prototypes: Build a prototype to check if parts fit as intended. Adjust tolerances if needed before full production.
Several challenges arise when maintaining dimensional accuracy:
Bend distortion: Bending can stretch or compress metal, altering dimensions. Solution: Use bend allowances and K-factors in CAD to predict changes.
Feature placement near bends: Features too close to bends may deform or shift. Solution: Keep cutouts and holes at safe distances from bends.
Material springback: After bending, metal may slightly return toward its original shape. Solution: Overbend slightly or compensate in design.
Tool wear: Cutting tools wear down, affecting precision. Solution: Regular maintenance and quality control during fabrication.
Thermal effects: Heat from welding or cutting can warp parts. Solution: Control heat input and use fixtures to hold parts steady.
By anticipating these issues and working closely with fabricators, you can design enclosures that meet tight tolerances and perform reliably.
Tip: Collaborate early with your fabricator to set achievable tolerances based on their processes, ensuring precise fits and reducing costly redesigns.
Choosing how to assemble your sheet metal enclosure affects its strength, durability, and ease of maintenance. Common assembly methods include:
Welding: Creates strong, permanent joints. Ideal when you need a sealed enclosure to keep out dust, moisture, or fluids. Welding seams can be ground smooth for a sleek look. However, welding requires skilled labor and can cause heat distortion if not controlled.
Rivets: Quick and cost-effective. Rivets only need matching holes in panels and provide decent strength. They make alignment easy but don’t offer a sealed joint, so not best for weatherproof enclosures.
Threaded Fasteners: Includes sheet metal screws, nuts and bolts, and PEM fasteners. Screws are simple but can loosen over time and may leave sharp edges. Nuts and bolts provide strong, reusable joints but need access on both sides. PEM fasteners are installed into the metal, offering reliable assembly and easy disassembly without tools on both sides.
Your assembly choice depends on whether you need permanent or removable joints, sealing requirements, and production volume.
Finishing protects your enclosure from corrosion, wear, and enhances appearance. Popular finishes include:
Powder Coating: Durable and available in many colors. Works well on steel and aluminum. It provides corrosion resistance and a smooth finish.
Anodizing: Common for aluminum. Adds corrosion resistance and wear protection while allowing a natural metallic look or colored surface.
Zinc Plating: Protects steel from rust. Often used before powder coating for extra corrosion resistance.
Mechanical Finishes: Polishing, brushing, or sanding stainless steel or aluminum for a clean, professional look without additional coatings.
Select a finish that suits the environment and desired aesthetic. Outdoor enclosures benefit from corrosion-resistant finishes, while indoor units may prioritize looks.
Finishing methods significantly influence how long your enclosure lasts and how it looks. For example:
A powder-coated steel enclosure resists rust and scratches, extending life in harsh environments.
Anodized aluminum keeps its surface intact against weather and wear but may show scratches more easily.
Polished stainless steel offers a sleek look but can show fingerprints or smudges, requiring more upkeep.
Proper finishing also helps maintain tight seals by protecting edges and joints from corrosion or damage.
Tip: Match your assembly and finishing choices to your enclosure’s environment and maintenance needs to ensure longevity and ease of use.
Designing sheet metal enclosures involves understanding functional and aesthetic requirements, choosing the right materials, and selecting optimal shapes. Considerations include material strength, weight, and cost, ensuring accurate tolerances, and deciding on assembly and finishing methods. Implementing these best practices ensures durable, functional enclosures. As you move forward, consider Sollwin Enterprise Co., Ltd. for quality sheet metal solutions. Their products provide exceptional value, combining durability with aesthetic appeal, supported by expert services tailored to meet diverse design needs.
A: An Enclosure Metal is a protective casing made from various metal materials designed to house and protect electronic components or equipment.
A: Consider factors like strength, weight, corrosion resistance, and cost. Steel, aluminum, and stainless steel are common choices for different environments and needs.
A: Precision ensures parts fit correctly, preventing alignment issues and ensuring protection against environmental factors like dust and moisture.
A: Aluminum is lightweight, corrosion-resistant, and conducts heat well, making it ideal for outdoor applications and weight-sensitive designs.
