Optimizing sheet metal design requires balancing wall thickness, bend radiuses, hole clearances, and weather-resistant surface coatings. Implementing strict engineering rules ensures maximum structural integrity, low production scrap, and seamless assembly for external components like the Outlet Sheet Metal Bracket.
Section | Summary |
Maintain Consistent Wall Thickness | Uniform gauge across single parts prevents severe stress concentration, warping, and bending errors. |
Optimize Inner Bend Radii and Relief Notches | Setting radii equal to material thickness and adding relief notches stops corner tearing and tooling distortion. |
Adhere to Hole and Slot Distance Rules | Keeping cutouts away from bend lines preserves geometric hole accuracy and stops metal stretching. |
Implement Proper Hemming and Flanges | Designing sufficient flange heights and selecting open hems boosts edge rigidity and tool access. |
Account for Material Grain Direction | Aligning primary structural bends perpendicular to rolling grain lines prevents surface micro-cracking. |
Design Efficient Cutouts and Tabs | Integrating self-locating tabs and relief windows simplifies panel alignment and lowers assembly cost. |
Specify Application-Specific Coatings | Using thin galvanizing protects exterior components like the Outlet Sheet Metal Bracket from weather exposure. |
Designing sheet metal parts with uniform wall thickness is essential to prevent structural fatigue, localized deformation, and fabrication defects.
Maintaining a single, continuous sheet thickness across a component is a fundamental requirement of industrial design. Introducing varying thicknesses within a single piece creates major manufacturing hurdles. Because raw stock comes in standard sheet gauges, varying thickness requires expensive secondary machining or welding separate plates, which introduces internal stress and lengthens lead times.
During press brake operations, uniform thickness ensures consistent force distribution and predictable springback along the bend line. Mixing gauges along a continuous bend line leads to uneven punch pressure, causing angular distortion. In assemblies subjected to thermal shifts or mechanical vibration, uneven thickness causes differential thermal expansion, leading to micro-cracking and fatigue failure along transition zones.
Engineers should select a single standard gauge that meets the highest mechanical load requirements of the part. If varying strength is needed across a frame, use separate single-gauge parts joined by fasteners or spot welding rather than varying the gauge of one continuous piece.
Selecting an inner bend radius equal to material thickness while adding generous bend relief notches eliminates edge tearing and tooling friction.
Achieving precise bends without sacrificing strength requires calculating inner bend radius relative to material thickness . Specifying sharp inside corners creates infinite stress concentrations and causes severe tensile stress along the outer surface during bending, leading to visible cracks.
Bend relief notches are equally critical where a flange terminates against adjacent flat sheet planes. Without relief cutouts, metal stretches unpredictably across the corner, tearing adjacent edges and bulging nearby flat faces. Laser-cutting rectangular or teardrop relief notches at bend intersections allows the material to deform cleanly within designated zones.
The minimum width of a bend relief notch should equal or exceed material thickness, while notch depth must equal or exceed inside bend radius plus material thickness. Following these dimensions contains deformation within the cutout, keeping adjacent functional faces perfectly flat for mounting.
Placing holes and slots at least twice the material thickness plus the bend radius away from bend lines prevents hole deformation.
Cutouts, mounting holes, and slots are crucial for securing hardware and routing cables. However, placing holes too close to bend lines causes severe distortion. During bending, inner zones compress while outer zones stretch. Holes positioned inside this active deformation zone warp into ovals, making them unusable for precision fasteners.
To preserve hole roundness, keep hole edges at a minimum distance ($D$) from the start of the bend radius ($D \ge 2T + R$). If space constraints force a hole closer to a bend line, cut the hole after bending, or design a relief slot along the bend line to isolate the cutout from bending stress.
Distance rules also apply to outer edge margins. Punching holes too close to a part edge causes the thin metal wall to bulge outward. Maintain a clearance of at least $2T$ between hole edges and outer perimeters to prevent wall buckling and preserve structural strength.
Hole to Bend Distance: Minimum distance equals $2T + R$.
Hole to Edge Distance: Minimum distance equals $2T$.
Hole to Hole Distance: Minimum spacing between adjacent holes equals $6T$.
Designing flanges with sufficient height and selecting open hems increases structural stiffness while ensuring tool clearance.
Flanges provide mounting faces, rigidity, and neat edges. A common flaw is specifying a flange height too short for standard V-die tooling. Short flanges slip into the bottom die opening before forming completes, resulting in slipping, bad bend angles, and surface marring.
The minimum height ($H$) of a 90-degree flange must be $H \ge 4T + R$. This dimension allows the sheet to rest securely across lower die shoulders during the press stroke. Long flanges should also be checked for ram clearance during multi-bend sequences.
To stiffen edges without adding gussets, engineers fold sheet edges 180 degrees into hems. Closed hems fold flat but trap pretreatment liquids, causing internal rust. Open hems retain a gap ($\text{Gap} \ge T$) that allows coating fluids to drain freely, preventing corrosion.
Orienting major bend axes perpendicular to the rolling grain direction maximizes crack resistance and fatigue endurance.
Cold-rolling sheet metal elongated grain structures along the rolling direction, giving the sheet directional properties. Metal shows high strength and ductility when forces run parallel to grains, but lower ductility when bent parallel to grain lines.
Bending parallel to grain lines concentrates stress along single grain boundaries, raising the risk of surface cracking. Bending perpendicular to grains spreads deformation across multiple elongated grains, yielding smooth, crack-free outer radii.
For multi-axis parts with 90-degree intersecting bends, orient the part at a 45-degree angle to the rolling direction. This balances ductility across all flanges.
In heavy-load enclosures, orienting load-bearing bends perpendicular to grain lines is vital. For critical mounting hardware, choosing components made with proper grain alignment guarantees dynamic durability. Learn more about structural support options by viewing our high-durability Outlet Sheet Metal Bracket selection designed for high-stress enclosure systems.
Integrating self-locating tabs, slots, and relief cutouts simplifies panel alignment and lowers assembly costs.
Complex multi-panel assemblies often suffer from cumulative tolerance stack-up, making manual alignment slow and requiring costly welding jigs. Integrating interlocking tabs and slots directly into laser-cut patterns creates self-jigging assemblies.
Tabs on one panel mate with slots on adjacent panels, fixing alignment automatically and eliminating manual positioning or external fixtures. Cutouts also reduce weight in non-structural web zones without sacrificing overall bending stiffness.
Selecting the right surface treatment or metallic coating prevents premature oxidation in unroofed installations.

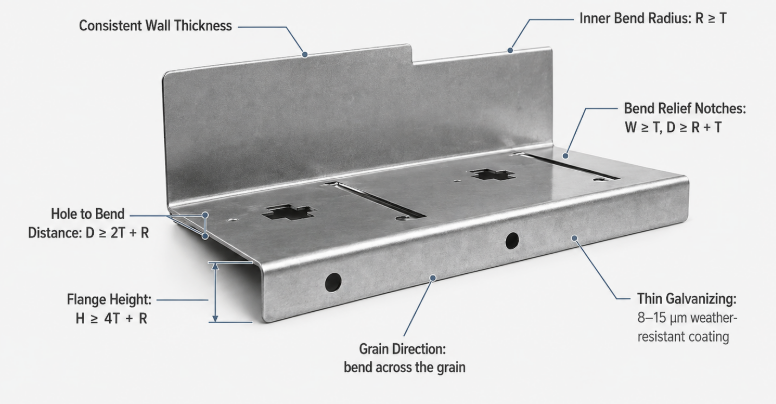

Outdoor industrial equipment operates under harsh environmental conditions. Certain functional parts sit outside the main roofing shelter of metal enclosures. For instance, an Outlet Sheet Metal Bracket serves as a vital exterior component on water heater units, holding electrical switches, push buttons, and control modules.
Unlike indoor cabinets, this bracket is mounted outside the primary roofing panels, leaving it directly exposed to ambient rain, humidity, and temperature changes without shelter.
Standard indoor powder coats or plain steel are inadequate here. The component demands thin galvanizing (zinc coating between 8 to 15 microns). This thin galvanized layer provides sacrificial rust protection while maintaining tight tolerances so screw threads and module slots do not clog.
Maintenance Tip: Inspect exterior brackets for edge scratches annually. If raw steel shows, apply zinc-rich cold galvanizing compound immediately to prevent rust spreading under adjacent coatings.
