Commonly Used Sheet Metal Bracket Production Guide

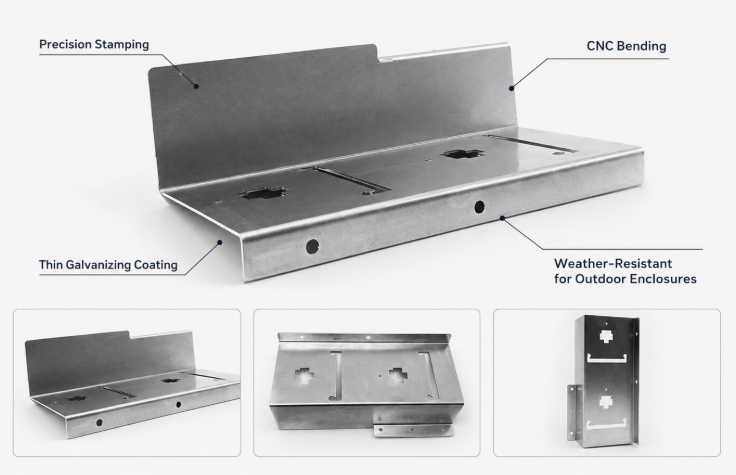

The production of a high-performance Outlet Sheet Metal Bracket involves precision stamping, progressive die forming, advanced CNC bending, and targeted thin galvanizing surface treatment to ensure robust mechanical integration, precise electrical module mounting, and long-term atmospheric corrosion protection in exterior water heater metal enclosures.

At a Glance

Material Selection and Metallurgical Standards

Selecting the appropriate alloy grade for an Outlet Sheet Metal Bracket requires balancing mechanical tensile strength, cold-forming ductility, weldability, and surface passivation characteristics.

Industrial water heater enclosures demand structural components capable of maintaining dimensional fidelity under mechanical vibrations and thermal shocks. When manufacturing an Outlet Sheet Metal Bracket, structural engineers typically specify commercial-quality cold-rolled carbon steel sheet (such as SPCC or ASTM A1008) or high-grade electro-galvanized steel (SECC). Cold-rolled carbon steel provides superior dimensional uniformity and smooth surface finishes, making it an ideal substrate for secondary thin galvanizing or electroplating. When higher intrinsic corrosion resistance is requested without secondary plating, austenitic stainless steel grades like SUS304 or aluminum alloys like 5052-H32 are evaluated. However, carbon steel combined with engineered surface coatings remains the most cost-effective choice for heavy-duty HVAC and water heating assemblies.

Metallurgical properties directly influence press brake tool wear, springback behavior, and stamping integrity. Formability is governed by the material's yield strength, ultimate tensile strength, and elongation percentage. For instance, SPCC steel exhibits a yield strength of approximately 130 to 240 MPa and an elongation exceeding 30 percent, which allows tight radius bends without micro-cracking along the outer tension zone. High-precision cold-rolled options maintain uniform grain orientation, reducing mechanical fatigue when mounted on active water heating units.

In exterior water heater applications, material selection must account for the absence of protective outer covers. Unlike components shielded inside an office storage metal enclosure, an exposed Outlet Sheet Metal Bracket must rely on its own material integrity and protective finish. European commercial buyers increasingly demand materials that comply with strict RoHS and REACH directives while maintaining mechanical stability at operational temperatures ranging from minus 30 degrees Celsius to 80 degrees Celsius.

Engineers designing high-reliability metal enclosures often reference specialized fabrication standards. To explore real-world production configurations, examine our engineered Outlet Sheet Metal Bracket for Metal Enclosure Fabrication for precise structural specifications.

Precision Manufacturing Process for Sheet Metal Brackets

The precision fabrication of an Outlet Sheet Metal Bracket relies on integrated automated stamping, high-speed fiber laser cutting, CNC multi-axis bending, and automated hardware insertion.

Production begins with digital computer-aided manufacturing (CAM) nested layout generation. High-precision fiber laser cutting systems (ranging from 3kW to 12kW power output) or CNC turret punch presses cut raw steel sheets into flat blanks with tight edge tolerances (within plus or minus 0.05 mm). Fiber lasers minimize heat-affected zones, preventing thermal distortion around intricate mounting cutouts designed for switch buttons, indicator lights, and digital control modules. For high-volume production runs exceeding 10000 units, progressive stamping dies replace laser cutting to perform multi-stage punching and blanking in a single continuous coil-fed operation, dramatically reducing unit cycle times.

Forming operations convert two-dimensional blanks into complex three-dimensional structural components. Multi-axis CNC press brakes utilizing precision-ground hardened tooling execute sequential bend operations. Achieving consistent 90-degree bends requires automated angle measurement systems that dynamically compensate for material lot variations and elasticity springback. During forming, tool operators establish exact K-factors (typically 0.33 to 0.42 depending on material thickness) to guarantee that flat pattern expansion calculations match final spatial dimensions. Mounting flanges, stiffening ribs, and self-clinching PEM nuts (such as M3 or M4 threaded fasteners) are integrated into the bracket geometry to facilitate rapid assembly on the customer's module line.

The manufacturing process demands strict process monitoring to ensure that mechanical features line up perfectly with external control interfaces. An improperly formed Outlet Sheet Metal Bracket leads to misalignment of switch buttons, binding of electrical contact blocks, or compromise of water-tight gaskets on water heater enclosures. Consequently, in-process optical sensors and laser displacement gauges are integrated directly into CNC press brake stations to continuously audit bend angles and flange heights.

For additional details regarding custom enclosure hardware options and product specifications, visit:

https://www.sollwin.com/Outlet-Sheet-Metal-Bracket-for-Metal-Enclosure-Fabrication-pd579597758.html

Thin Galvanizing and Surface Protection Engineering

Applying a controlled thin galvanizing layer provides vital electrolytic sacrificial protection, shielding exposed steel brackets from rust in harsh outdoor environments.

Our production analysis highlights a critical functional distinction: an Outlet Sheet Metal Bracket serves as an external mounting interface for water heater metal enclosures, housing essential electrical components such as switch buttons, display screens, and control modules. Unlike internal structural hardware sealed within an office storage metal enclosure, or structural components protected under a roofing sheets metal enclosure, this bracket operates externally without secondary protective housings. As a result, un-shielded carbon steel components undergo rapid oxidation when subjected to rain, ambient moisture, and thermal shifts. To counteract atmospheric degradation, the component is treated with an engineered thin galvanizing electro-deposition coating.

Thin galvanizing (typically specifying an electro-zinc coating thickness of 8 to 15 microns) provides an economical and durable protective layer. The process applies a uniform zinc layer across complex bracket geometries, deep draw recesses, and threaded mounting holes without clogging precision threads. Zinc acts as a sacrificial anode: even if the surface coating suffers scratch damage during field installation of switch buttons, the surrounding zinc layer oxidizes preferentially, protecting the underlying steel matrix. Following electro-zinc plating, a trivalent chromium passivation layer (blue-white, yellow, or iridescent film) is applied to seal the zinc pores, boosting salt spray corrosion resistance.

European OEMs frequently request strict environmental compliance alongside prolonged outdoor durability. Trivalent passivated thin galvanizing meets directive standards (RoHS-compliant) while offering robust protection against neutral salt spray testing. For severe marine environments, a hybrid coating system combining electro-galvanizing with a secondary hydrophobic thin-film sealant or clear topcoat is utilized to extend the service life of the Outlet Sheet Metal Bracket beyond 10 years of outdoor operation.

Surface Treatment Maintenance and Processing Tips: To prevent premature white rust formation on thin galvanized sheet metal brackets prior to assembly, store pre-plated components in climate-controlled environments with relative humidity maintained below 50 percent. Avoid direct hand contact without lint-free cotton gloves during assembly, as skin oils contain sodium chloride and organic acids that can pit thin trivalent passivation films. During electroplating processing, monitor bath chemistry continuously to prevent hydrogen embrittlement; high-tensile fasteners integrated into the bracket must undergo a baking de-embrittlement cycle at 200 degrees Celsius for 4 hours within 1 hour after electroplating.

Dimensional Tolerances and Quality Control Protocols

Stringent dimensional quality control protocols ensure seamless mechanical fitment, waterproof seal compression, and reliable switch button actuation on the final assembly line.

Quality assurance for an Outlet Sheet Metal Bracket requires verifying critical dimensional features across multiple axes. Because the bracket acts as an interface between the internal wiring harness and the outer water heater shell, out-of-spec hole locations can cause binding of electrical switches or panel misalignment. Quality control procedures employ automated coordinate measuring machines (CMM), 2D optical profile projectors, and custom go/no-go pin gauges to verify cutouts, bend angles, and hole pattern pitches. Key geometric tolerances are defined in accordance with ISO 2768-m (medium tolerance class for metal fabrication) or ASME Y14.5.

Inspectors focus on true position tolerances of mounting holes, flatness across sealing surfaces, and overall height consistency of formed flanges. A flat mounting plane is required to compress weather-sealing EPDM or silicone gaskets against the water heater shell. If the bracket flange exhibits excessive warp or twist exceeding 0.25 mm per 100 mm, moisture can penetrate the electrical enclosure, resulting in short circuits or internal component corrosion. Standard tolerances require linear hole distances within plus or minus 0.15 mm, bend angles within plus or minus 0.5 degrees, and surface flatness within 0.30 mm per 100 mm to maintain mechanical alignment.

Statistical Process Control metrics, such as Cp and Cpk values, are continuously tracked for key features like hole diameters and main bend angles. A target Cpk threshold greater than 1.33 guarantees that manufacturing variability remains well within engineering tolerances. Integrating high-durability mounting hardware such as our specialized Outlet Sheet Metal Bracket ensures high dimensional repeatability across high-volume production batches.

Structural Design Optimization and DFM Insights

Applying Design for Manufacturability (DFM) principles reduces unit production costs, eliminates stress concentrations, and improves mechanical reliability in sheet metal brackets.

Successful bracket design balances structural stiffness against metalworking limits. A common mistake in custom sheet metal engineering is placing cutouts or switch button mounting holes too close to a bend line. When holes are located inside the deformation zone of a bend, the material stretches, distorting round holes into ellipses and preventing proper snap-in seating of switch buttons or display modules. As a general DFM rule, the minimum distance from a hole edge to a bend tangent line should equal at least two times the sheet thickness, plus the internal bend radius.

Another crucial DFM consideration is selecting the appropriate inside bend radius. Attempting to form sharp internal corners (bend radius of zero) causes localized material thinning, high tensile stress concentrations, and potential micro-fracturing along the outer bend radius, especially in cold-rolled steel undergoing subsequent surface plating. Designers should maintain an internal bend radius at least equal to the material thickness. Furthermore, incorporating bend relief notches with widths of at least 1.5 times the sheet thickness at corners where perpendicular flanges intersect prevents tearing of the metal during press brake forming operations.

Engineers often evaluate structural choices by asking practical design questions: Why is the bracket designed with asymmetrical mounting ears? In real-world field installations, asymmetrical mounting layouts act as mistake-proofing (Poka-Yoke) features, preventing technicians from installing the bracket upside down during fast-paced assembly line operations. What functions matter most to end users? Customers prioritize secure switch button retention, simple wiring harness access, zero edge burrs that could cut wire insulation, and reliable weatherproofing that stands up to rain and UV exposure over years of continuous service.

Industrial Application Scenarios and Global Market Standards

Engineered sheet metal brackets provide critical structural mounting solutions across water heating units, industrial HVAC systems, and outdoor power electronics.

The operational demands placed on an Outlet Sheet Metal Bracket depend directly on its target installation environment. In commercial and residential water heater metal enclosures, this bracket serves as the central physical anchor for user-interface switches, thermostat controls, and power adjustment modules. Because water heaters are frequently installed in semi-outdoor utility closets, basements, or exterior building alcoves, the mounting hardware is exposed to ambient atmospheric fluctuations, elevated humidity, and potential water splashes. Consequently, European and North American HVAC original equipment manufacturers (OEMs) demand strict adherence to international protection standards such as IEC 60529 (IP Code ratings) and NEMA enclosure guidelines.

Market feedback reveals distinct regional engineering preferences across global supply chains. Which configurations are most popular among European clients? European OEMs generally favor compact, modular bracket designs constructed from high-yield cold-rolled steel treated with environmentally friendly trivalent thin galvanizing or electro-zinc plating paired with RoHS-compliant sealants. They place a strong emphasis on precise laser-cut tolerances, smooth deburred edges, integrated grounding tabs (to prevent electrical shock hazards), and streamlined geometries that support fast click-in assembly of switch buttons and smart IoT control cards. Conversely, North American buyers often request thicker-gauge materials featuring heavy-duty self-clinching PEM studs for high mechanical load ratings.

In summary, across outdoor water heater units, commercial HVAC controls, and industrial automation machinery, choosing the right material, DFM guidelines, and protective coatings guarantees high product reliability. By implementing precision blanking, multi-axis CNC forming, rigorous DFM checks, and high-performance thin galvanizing, manufacturers produce robust, long-lasting sheet metal brackets that meet the demanding quality standards of global industrial clients.
