How are Metal Brackets Manufactured?

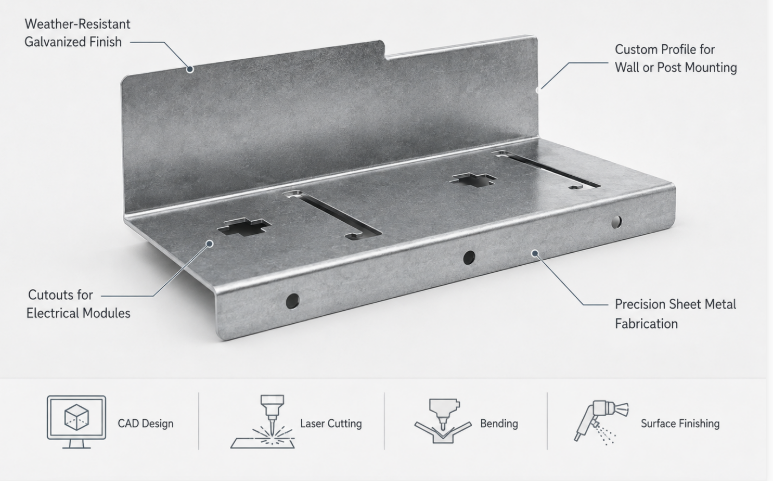

Metal brackets are manufactured through an integrated industrial sheet metal fabrication process consisting of computer-aided mechanical design (CAD/CAM), automated laser cutting or CNC punching, precision press brake bending, secondary machining operations, welding, and high-durability surface finishing. The production begins by converting raw sheet metals such as cold-rolled steel, stainless steel, or aluminum into flat patterns, followed by progressive force application to establish dimensional geometry. Surface engineering treatments, including thin zinc galvanizing, powder coating, or anodizing, are systematically applied to ensure environmental resistance, structural integrity, and exact tolerance adherence for target application environments.

Table of Contents

• Engineering Design and Material Selection for Metal Brackets

• Blanking and Cutting Technologies in Sheet Metal Bracket Production

• Forming, Bending, and Stamping Operations for Structural Brackets

• Secondary Machining, Assembly, and Fastener Integration

• Surface Finishing and Environmental Protection for Metal Brackets

• Quality Assurance, Testing, and Precision Inspection Protocols

Engineering Design and Material Selection for Metal Brackets

The design and material selection phase establishes the foundational geometry, mechanical strength, and environmental resilience of an Outlet Sheet Metal Bracket through advanced 3D CAD modeling, finite element analysis (FEA), precise k-factor flat pattern development, and material property matching.

In industrial sheet metal manufacturing, transforming an abstract concept into an operable mechanical component requires an exhaustive technical assessment. Engineers start by constructing parametric 3D models using CAD software like SolidWorks or Autodesk Inventor. During this initial phase, structural integrity must be validated under calculated static and dynamic loads. Mechanical engineers analyze tensile strength, yield strength, and thermal expansion coefficients to ensure that the designated metal alloy maintains structural stability throughout its service life. The flat pattern generation relies heavily on precise K-factor and bend deduction calculations, which account for material stretch along the neutral axis during cold forming operations.

Selecting the correct raw material is equally critical to manufacturing success. Cold-rolled steel offers exceptional strength and dimensional consistency for general-purpose structural support, whereas stainless steel grades (such as 304 and 316) provide inherent corrosion resistance suitable for marine or chemical processing units. Aluminum alloys (such as 5052-H32) provide an advantageous strength-to-weight ratio, making them popular for aerospace and portable electronics enclosures. Each alloy behaves differently under punch forces and press brake tooling, directly influencing bend radiuses, springback values, and overall production yield rates across high-volume production runs.

Furthermore, engineering design must account for spatial constraints within complex assemblies. For specialized applications such as water heater equipment or external electrical controls, brackets often host sensitive control interfaces. Design parameters must guarantee that mounting holes, cutout notches, and stiffening ribs align with external chassis dimensions without causing electromagnetic interference or mechanical pinching. Proper design for manufacturability (DFM) minimizes scrap rates, reduces press setup cycles, and streamlines downstream surface treatment workflows.

Material Bend Deduction Formula: The calculated flat length Lf is determined by the equation Lf = A + B − BD, where A and B represent external flange dimensions and BD denotes the empirical bend deduction based on the K-factor equation K = tn / T.

Blanking and Cutting Technologies in Sheet Metal Bracket Production

Blanking and cutting operations establish the initial two-dimensional geometric profiles of an Outlet Sheet Metal Bracket using CNC fiber laser cutting, turret punch pressing, or mechanical shearing with tight dimensional tolerances.

Once the sheet metal flat pattern layout is optimized through nesting algorithms to minimize scrap material, physical production commences on the cutting shop floor. Modern industrial manufacturing overwhelmingly relies on high-power CNC fiber laser cutting systems due to their superior velocity, narrow kerf width, and ability to process complex geometries without specialized physical tooling. The fiber laser beam vaporizes or melts metal along specified vector paths using assist gases such as nitrogen or oxygen, producing clean, burr-free edges that eliminate the need for secondary manual deburring operations in most structural applications.

For high-volume production runs featuring repetitive hole patterns, slots, or embossed louvers, CNC turret punch presses provide superior economic efficiency. Turret punches utilize hydraulic or servo-electric ram actuators to drive standardized punch and die sets through the sheet material at high stroke rates. Advanced combination machines integrate laser cutting heads with CNC punching turrets, allowing complex outer contours to be laser-cut while internal fastener holes and countersinks are rapidly punched. Mechanical shearing remains suitable for basic rectangular blanks, but offers limited utility for intricate bracket contours requiring high positional accuracy.

Maintaining micro-level dimensional precision during cutting operations is vital for subsequent forming steps. Edge quality directly influences bend predictability; rough edges with excessive burrs or thermal micro-cracks act as stress concentration points during press brake bending, potentially leading to material fatigue or cracking. Modern manufacturing facilities implement optical laser sensors and automated sheet loading systems to maintain consistent kerf geometry and positioning tolerances within ±0.05 mm across multi-ton production batches.

Forming, Bending, and Stamping Operations for Structural Brackets

Forming and bending transform 2D flat metal blanks into rigid 3D structural Outlet Sheet Metal Bracket components using CNC hydraulic press brakes, progressive stamping dies, and precise angular force application.

Cold forming sheet metal into three-dimensional brackets requires precise control over plastic deformation principles. On CNC press brakes, the metal sheet is positioned over a V-die, and a matching punch descends to force the sheet into the desired angular profile. Engineers must carefully calculate springback—the tendency of metal to partially return to its original flat state after punch force release—by adjusting die angles or applying over-bending techniques. Modern multi-axis CNC press brakes feature automated crowning systems and real-time laser angle measuring devices that continuously adjust ram depth, guaranteeing angular accuracy within ±0.2 degrees.

For high-volume manufacturing, progressive die stamping in high-tonnage mechanical presses replaces individual press brake operations. In a progressive die, a continuous strip of sheet metal feeds through sequential workstations. Each station performs a distinct operation—such as piercing, notch blanking, rib embossing, flange bending, and final cut-off—at speeds exceeding 60 to 120 strokes per minute. Stiffening ribs and gussets are frequently stamped into structural bracket arms to dramatically increase section modulus and bending strength without adding raw material mass or overall unit weight.

Understanding the interplay between grain direction and bend orientation is mandatory during blank nesting and forming. Bending perpendicular to the rolling grain direction maximizes crack resistance, whereas bending parallel to the grain increases material fracture risk along the bend line. Proper bend radiuses must be selected based on material thickness T; setting an inside bend radius smaller than 1.0T in high-strength alloys induces severe tensile strain on outer bend fibers, weakening the structural integrity of the final installation.

Secondary Machining, Assembly, and Fastener Integration

Secondary machining integrates mounting threads, hardware fasteners, and structural joints into an Outlet Sheet Metal Bracket via automated tapping, countersinking, PEM clinch stud installation, and spot welding.

A bare formed metal bracket rarely operates as a standalone piece; it must seamlessly integrate into larger mechanical assemblies. Secondary operations add mechanical functionality. Precision drilling, tapping, and countersinking operations prepare holes for flush-fit machine screws. When working with thin sheet metals where thread engage depth is insufficient to sustain high torque loads, specialized clinch fasteners (such as PEM self-clinching nuts, studs, and standoffs) are pressed into cold-flow punch holes using pneumatic or hydraulic insertion presses. The cold metal flows around the fastener neck notch, creating a permanent, high-torque joint resistance.

When multi-piece bracket designs require permanent joinery, resistance spot welding, TIG (GTAW), or MIG (GMAW) welding processes are employed. Resistance spot welding is particularly effective for joining overlapping sheet flanges without adding filler wire, delivering strong structural bonds while minimizing thermal distortion. For heavy-duty brackets supporting dynamic vibrational loads, continuous stitch welding or Robotic TIG welding ensures full penetration and seamless structural continuity. Weld seams are subsequently ground flat when smooth cosmetic appearance or tight seal mating is required.

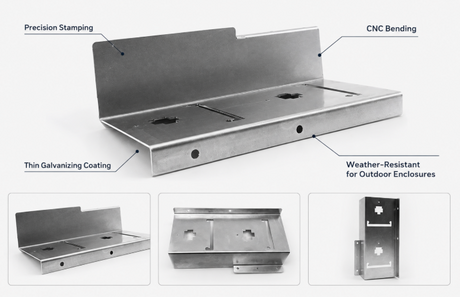

In specialized industrial hardware applications—such as water heater equipment—an Outlet bracket is a part of metal enclosure for water heater which is able to set electrical components something like switch button and kinds of modules. But it is normally request to separate with the office storage metal enclosure. It is meaning it is out of roofing sheets metal enclosure without protection. So this part is design to be coated by thin galvanizing for weather resistantce. This structural separation makes precision secondary integration of threaded standoffs and mounting clips essential to securely isolate electrical control modules from high-moisture thermal environments.

Fastener Torque Maintenance Tip: When installing self-clinching studs into thin sheet metal brackets, always ensure punch hole tolerance adheres strictly to +0.08 / -0.00 mm. An oversized hole reduces push-out retention force by up to 60%, causing fastener displacement during field assembly.

Surface Finishing and Environmental Protection for Metal Brackets

Surface finishing shields the Outlet Sheet Metal Bracket against chemical corrosion, moisture oxidation, and physical abrasion through electro-galvanizing, electro-deposition, powder coating, or anodizing treatments.

Unprotected raw metal sheet components rapidly oxidize when exposed to ambient atmospheric conditions, humidity, or industrial airborne pollutants. Surface engineering treatments establish an active or passive barrier against chemical degradation. Electro-galvanizing applies a microscopic, uniform layer of sacrificial zinc over carbon steel surfaces, forming a barrier that corrodes preferentially before the underlying steel substrate is attacked. For components positioned outdoors or exposed to harsh environments—such as water heater exterior modules—thin galvanizing provides an economical yet robust weather barrier that does not compromise tight thread tolerances or mechanical fit dimensions.

When enhanced color coding, UV resistance, or high dielectric strength is mandated, electrostatic powder coating is applied over the pre-treated metal. The bracket passes through multi-stage chemical degreasing, iron phosphate or zirconium pre-wash, and clear water rinsing. Dry thermoplastic or thermosetting polymer powder is spray-applied using an electrostatic gun, charging powder particles so they adhere evenly to the grounded metal bracket. The part is then conveyed into a curing oven operated at 180°C to 200°C, melting the powder into a continuous, chemical-resistant polymer shell.

For aluminum structural brackets, chromate conversion coating or sulfuric acid anodizing is preferred. Anodizing electrochemically thickens the natural aluminum oxide layer, yielding a hard, wear-resistant surface that accepts organic dyes for cosmetic color customization. Selecting the optimal surface finish requires balancing operational environmental factors, target service life, electric conductivity needs, and total manufacturing expenditure.

Quality Assurance, Testing, and Precision Inspection Protocols

Quality assurance verifies that every manufactured Outlet Sheet Metal Bracket complies with strict engineering drawing specifications, geometric dimensioning and tolerancing (GD&T), structural load capacity, and surface adhesion standards.

Maintaining high production yields across thousands of stamped or formed sheet metal components requires rigorous quality control protocols. Modern manufacturing facilities employ Coordinate Measuring Machines (CMM) equipped with tactile touch probes or optical 3D laser scanners. These systems scan finished brackets and compare point-cloud data against the native 3D CAD model, identifying dimensional deviations, hole center displacements, or angular bend errors within microns. Laser bend check sensors automatically flag any springback variance on the factory floor before parts move to final finishing.

Mechanical testing validates structural strength. Destructive tension and shear testing assess spot-weld integrity and fastener push-out resistance, verifying that hardware will not dislodge under high installation torque or heavy dynamic vibration. For brackets supporting significant mechanical loads, yield strength testing ensures the part withstands maximum design capacity without suffering permanent plastic deformation. Coating quality is validated through cross-hatch adhesion testing (ASTM D3359), magnetic coating thickness gauge checks, and salt spray fog testing (ASTM B117) to guarantee long-term corrosion resistance in real-world environments.

Standardized quality management systems such as ISO 9001 and IATF 16949 dictate complete material traceability. Every batch of raw sheet metal must be backed by Mill Test Certificates (MTC) verifying chemical composition and mechanical yield properties. Implementing automated inline optical inspection and Statistical Process Control (SPC) charting allows manufacturing engineers to detect tool wear and process drift early, ensuring zero-defect quality across global supply chains.

Maintenance & Inspection Protocol: Periodically calibrate press brake backgauges every 500 operating hours and inspect progressive stamping dies for edge dulling. Maintaining sharp die edges prevents burr formation exceeding 0.05 mm, protecting downstream coating integrity and preventing stress fractures.

Summary and Engineering Conclusions

Manufacturing high-precision metal brackets is an integrated engineering discipline combining material science, CNC laser cutting, progressive press brake forming, precision secondary fastener integration, and protective surface finishing. Every phase of production—from initial k-factor flat pattern development to final salt spray testing—plays a vital role in ensuring structural reliability and dimensional accuracy. As industrial applications continue to demand lighter yet stronger components capable of enduring harsh environmental conditions, working with an experienced precision metal fabrication partner remains essential. By adhering to rigorous DFM principles, utilizing automated fabrication machinery, and applying specialized coatings like thin galvanizing, manufacturers produce structural brackets that consistently exceed global quality standards.
