Metal Bracket Types Explained and Their Uses

Metal brackets are engineered structural components fabricated from carbon steel, stainless steel, or aluminum that join, support, position, or align mechanical assemblies, electrical modules, and structural framing across industrial applications. Selecting the appropriate metal bracket requires evaluating mechanical load capacities, ambient corrosion factors, mounting geometry, and specialized manufacturing processes such as precision CNC laser cutting, press brake bending, compression patterning, and electro-galvanizing surface finishing to ensure long-term operational performance.

1. What is a metal bracket?

A metal bracket is an engineered structural hardware element formed from sheet metal or extruded plate that fastens, supports, secures, or aligns two or more intersecting components within a mechanical or electrical assembly.

In structural and electrical engineering, a metal bracket functions as a load-bearing link that redistributes weight, absorbs kinetic energy, and maintains alignment between sub-assemblies. From simple angle brackets to complex sheet metal brackets for control boxes, these components maintain structural integrity under shear, tensile, and torsional stress. Fabricated from flat sheet metal stock through progressive cutting and bending operations, metal brackets accommodate precise tolerances for seamless assembly line integration.

Beyond basic load bearing, specialized metal brackets serve positioning roles in modern equipment enclosures. For instance, an custom Outlet Sheet Metal Bracket provides an external interface point on industrial equipment, allowing operators to mount electrical switches, reset buttons, and display screens directly onto protective housings. Because these brackets interface with internal wiring while remaining exposed to environmental elements, their design must balance geometric precision, rigidity, and corrosion barrier performance.

Our production team analyzes how bracket geometry impacts stress distribution under operating conditions. When designing custom sheet metal bracketry for clients, our engineers evaluate neutral axis displacement during press brake bending to ensure mounting hole patterns remain aligned after plastic deformation. Proper hole clearances and corner notch radii prevent stress risers, ensuring the bracket withstands continuous vibration, thermal expansion cycles, and shock impacts over years of field operation.

2. What are the main types of metal brackets?

The main types of metal brackets include L-brackets, U-brackets, Z-brackets, gusseted brackets, flat tie plates, and specialized enclosure outlet brackets, each engineered with specific cross-sectional geometries to handle distinct loading profiles.

1. L-Brackets and Right-Angle Brackets: Representing basic mounting geometry, L-brackets join perpendicular planes at a 90-degree angle. They are deployed in structural framing, cabinet rack mounting, and enclosure corners. Our engineering team incorporates stiffening ribs along the inside corner bend of L-shaped designs to increase moment capacity without increasing overall sheet metal gauge.

2. U-Brackets and Channel Brackets: Designed with a three-sided channel profile, U-brackets encase structural beams, cylindrical pipes, or rectangular modules. They distribute mechanical forces across dual parallel planes, providing resistance against side-load shearing and torsional twisting. In power generation and HVAC machinery, heavy-duty U-brackets secure transformers and motor drives firmly against primary support frames.

3. Z-Brackets and Offset Mounting Brackets: Featuring two parallel flanges extending in opposite directions from a central web, Z-brackets facilitate stepped mounting configurations. They allow engineers to create clearance zones between parallel sheet metal panels, accommodating wiring channels, insulation layers, or recessed electrical modules inside deep electrical enclosures.

4. Gusseted and Heavy-Duty Reinforced Brackets: For applications subjected to severe cantilever loads, gusseted brackets feature welded or stamped triangular support webs across their inner flex angles. These structures elevate the section modulus, resisting bending moments caused by heavy pumps, industrial transformers, or external mechanical linkages.

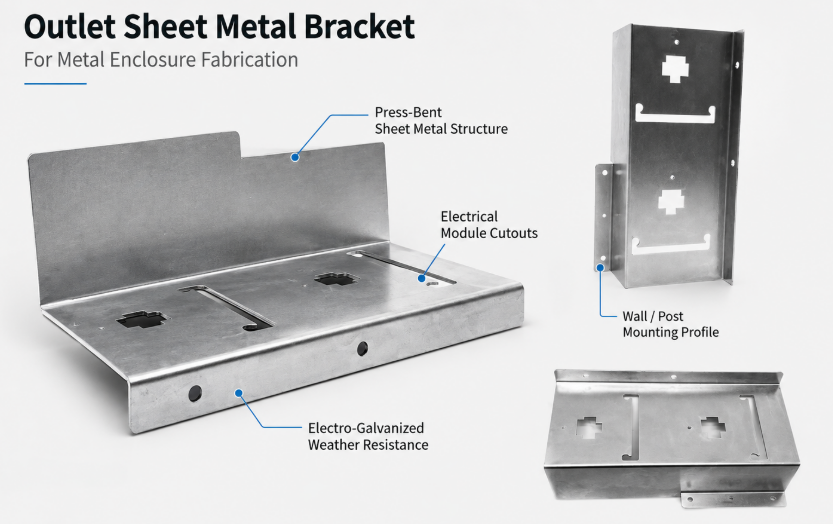

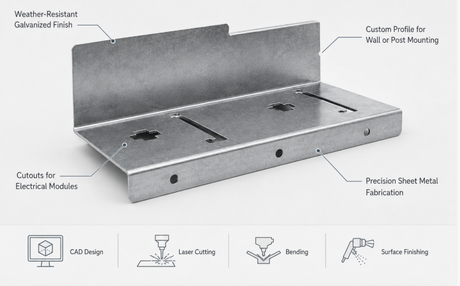

5. Specialized Enclosure Outlet Brackets: In advanced electrical designs, an Outlet Sheet Metal Bracket is engineered to sit on the exterior wall of a main metal enclosure. Unlike internal mounting plates, an Outlet Sheet Metal Bracket provides designated cutouts and compression patterns for electrical switch buttons and indicator lights. These brackets bridge internal electrical controls with external operational interfaces while maintaining mechanical stability under continuous manual actuation.

3. What are metal brackets used for?

Metal brackets are used to secure structural joints, anchor internal equipment, align panel enclosures, absorb vibration, and provide dedicated mounting interfaces for external electrical components like switch buttons and sensor modules.

1. Structural Load Bearing and Load Transfer: The primary function of any industrial metal bracket is to create a rigid joint that transfers weight and force vectors into the primary skeleton of a machine, building, or cabinet enclosure. In heavy equipment manufacturing, precision metal brackets prevent structural sag, maintain frame squareness, and resist fatigue failure caused by operational vibrations and cyclic thermal stresses.

2. Component Isolation and Modular Integration: In thermal and electrical appliances, such as commercial water heater units and HVAC control systems, metal brackets isolate electrical components from high-heat zones or fluid lines. An Outlet Sheet Metal Bracket is engineered specifically for this purpose. It serves as an auxiliary mounting plate dedicated to holding electrical switch buttons and digital thermostats externally. By isolating these control interfaces on a dedicated Outlet Sheet Metal Bracket, technicians can perform routine maintenance without disassembling the primary protective roofing sheets or main cabinet housing.

3. Outdoor Enclosure Mounting and Cabinet Rack Fixation: Industrial control boxes deployed outdoors require specialized mounting brackets to attach the enclosure securely to posts, concrete walls, or steel building columns. These brackets must handle wind loading, dead weight loads, and mechanical shock while maintaining a tight weather seal against the outer cabinet skin. Custom mounting profiles allow engineers to tailor bracket hole centers directly to site-specific post diameters or unistrut rail channels.

European B2B clients emphasize the need for modular bracket flexibility in modular building and HVAC installations. During client technical audits, our engineers address queries regarding why a specific bracket is designed with specialized compression patterns rather than standard flat stamped holes. The answer lies in structural rigidity and component integration: compression patterns create localized stiffening ridges while providing recessed seating for switch buttons, preventing accidental actuation and protecting module seal rings from weather exposure.

For specialized enclosure projects requiring dedicated module interfaces, selecting a precision-engineered precision Outlet Sheet Metal Bracket for metal enclosure fabrication ensures seamless component fitment and long-term mechanical reliability.

4. What materials are used to make metal brackets?

Metal brackets are primarily manufactured from cold-rolled carbon steel, electro-galvanized steel, structural aluminum alloys (5052-H32 and 6061-T6), and austenitic stainless steel grades (304 and 316) to meet specific strength and corrosion resistance demands.

Cold-Rolled Carbon Steel (SPCC/SECC): Carbon steel provides high tensile strength, fatigue resistance, and cost-effective manufacturing for general indoor applications. Raw carbon steel oxidizes rapidly in humidity, so electro-galvanized steel (SECC) is widely utilized for indoor enclosures. The thin zinc coating applied via electro-deposition provides sacrificial protection against rust without interfering with tight press brake bending tolerances or thread-tapping operations.

Aluminum Alloys (5052-H32 / 6061-T6): For applications demanding light weight and natural atmospheric corrosion resistance, aluminum alloys are selected. Grade 5052-H32 offers formability, allowing tight bend radii without cracking, making it ideal for sheet metal brackets. Grade 6061-T6 provides higher structural yield strength for heavy load applications. Aluminum brackets are specified for cabinet rack enclosures, outdoor telecom boxes, and marine-adjacent installations where weight reduction and rust prevention are paramount.

Stainless Steel Grades (AISI 304 / 316): When operating environments involve chemical exposure, humidity, or salt spray, austenitic stainless steel is required. Grade 304 delivers general corrosion resistance, while Grade 316 contains molybdenum for enhanced protection against pitting in marine environments. Stainless steel brackets maintain structural integrity across thermal ranges, though their higher work-hardening rate requires specialized tooling during punching and bending operations.

In the case of an Outlet Sheet Metal Bracket designed for commercial water heater enclosures, material selection requires balancing cost, formability, and environmental exposure. An Outlet Sheet Metal Bracket is installed on the exterior of a water heater assembly, separate from insulated internal office storage metal enclosures and protruding beyond protective roofing sheets. Because it lacks external shelter, an Outlet Sheet Metal Bracket fabricated from carbon steel must be coated with thin electro-galvanizing or powder coating. Alternatively, specifying aluminum or stainless steel for an Outlet Sheet Metal Bracket provides inherent weather resistance, ensuring outdoor humidity and precipitation do not degrade the switch button mounting interface.

Maintenance Tips for Outdoor Bracket Coatings: For sheet metal brackets deployed outdoors on external enclosures, inspect electro-galvanized zinc coatings annually for signs of surface oxidation. Avoid using harsh abrasive cleaners or acid-based chemical degreasers that strip thin galvanized layers. In high-salt coastal environments, clear drain ports at the base of the bracket to prevent standing water accumulation, and apply a neutral zinc-rich touch-up compound to any scuffed mounting edges to preserve sacrificial corrosion protection.

5. How are metal brackets manufactured?

Metal brackets are manufactured through an integrated sheet metal fabrication process comprising CNC fiber laser blanking, CNC press brake forming, compression patterning, edge deburring, and protective surface finishing such as thin electro-galvanizing.

The fabrication lifecycle begins with CNC fiber laser cutting or progressive turret punching. Raw metal sheets are blanked with high dimensional accuracy, creating the outer profile, mounting bolt holes, and module cutouts. Fiber lasers execute sharp internal cutouts with zero thermal distortion, ensuring that opening geometry for switch buttons and electrical connectors remains perfectly square and burr-free.

Following blanking, sheet metal parts transition to CNC hydraulic press brakes for precision bending. Operators select specialized v-dies and punch toolings based on material thickness, bend radius, and required bend angles. For intricate brackets, multi-stage bending sequences form complex offset flanges and mounting lips. During this stage, secondary compression patterning can be stamped into specific surfaces to introduce localized relief profiles and anti-rotation notches that securely nest electrical modules and switch buttons, preventing component twist during operation.

The final phase involves surface treatment, which dictates the environmental durability of the bracket. While internal enclosure components rely on standard phosphatizing, an external component like an Outlet Sheet Metal Bracket demands robust weather protection. Because an Outlet Sheet Metal Bracket sits outside protective roofing sheets without outer housing cover, it undergoes high-quality electro-galvanizing. This thin zinc coating deposits a uniform metallic barrier that penetrates micro-crevices and internal hole threads without compromising dimensional fitment, providing resistance to weather exposure, rust formation, and atmospheric oxidation.

6. How to choose the right metal bracket?

Choosing the right metal bracket requires evaluating static and dynamic load requirements, environmental exposure levels, material compatibility, mounting geometry profiles, and specialized module fitment requirements.

1. Assessing Mechanical Load and Dynamic Stress: Engineers must first calculate static weight, cantilever torque, and dynamic vibration forces acting on the bracket. For heavy industrial assemblies, selecting a heavy-gauge steel bracket with embossed gussets prevents structural deflection. For light electrical interface components, lightweight aluminum or thin-gauge galvanized steel provides adequate mechanical support while reducing total equipment mass.

2. Evaluating Environmental Exposure and Weathering Risks: Operating environment dictates material selection and coating specifications. Indoor office storage enclosures require basic dust protection and moderate humidity resistance. Conversely, components mounted on outdoor water heaters, rooftop HVAC equipment, or rack enclosures face UV radiation, rain, and temperature fluctuations. In these outdoor scenarios, an Outlet Sheet Metal Bracket must be specified with thin electro-galvanizing, anodized aluminum, or 304 stainless steel to ensure weather-resistant operation without rust degradation.

3. Ensuring Module Compatibility and Mounting Profiles: A critical selection step is matching the bracket mounting surface to the target installation structure. Brackets designed with customizable mounting profiles can be adapted to fit flat wall surfaces, round mounting posts, or specialized unistrut channels. Furthermore, when integrating control modules, verifying that compression patterns match electrical switch button dimensions prevents installation binding and ensures an IP-rated seal.

When reviewing B2B procurement trends, our engineering department observes distinct regional preferences. European clients heavily favor modular Outlet Sheet Metal Bracket designs featuring standardized DIN-rail interface cutouts and thin electro-galvanized coatings that comply with strict RoHS and REACH environmental regulations. North American industrial buyers frequently prioritize heavier gauge steel with custom post-mounting profiles to withstand high mechanical wind loads on outdoor site enclosures.

⭐Click the link below to discover our specialized mounting solutions for outdoor enclosures and electrical module integration:

https://www.sollwin.com/Outlet-Sheet-Metal-Bracket-for-Metal-Enclosure-Fabrication-pd579597758.html

7. What are common problems when selecting metal brackets?

Common problems when selecting metal brackets include underestimating galvanic corrosion between dissimilar metals, miscalculating material springback during press brake bending, and specifying incorrect compression fitment tolerances for electrical modules.

1. Underestimating Galvanic Corrosion and Environmental Degradation: A frequent field failure mode occurs when stainless steel fasteners are used directly on bare carbon steel brackets without insulating washers, or when an unshielded steel bracket contacts aluminum framing in humid environments. The resulting galvanic potential difference causes rapid oxidation of the anodic metal. To prevent galvanic destruction on external assemblies, engineers must specify compatible surface coatings. For example, an Outlet Sheet Metal Bracket treated with thin electro-galvanizing provides a protective sacrificial layer that insulates the core steel from contact corrosion while enduring outdoor weather exposure.

2. Miscalculating Bend Radius and Material Springback Tolerances: In precision sheet metal fabrication, every metal alloy exhibits elastic springback after press brake forming. High-strength aluminum and stainless steel display significantly higher springback ratios than soft carbon steel. If tool operators fail to overbend the sheet metal to compensate for elastic recovery, final bend angles deviate from nominal drawing specifications, causing hole pattern misalignment during final assembly.

3. Ignoring Module Fitment and Compression Pattern Precision: When designing an Outlet Sheet Metal Bracket for setting switch buttons and control modules, failing to account for sheet metal coating thickness in hole tolerance calculations can lead to assembly line failures. Electro-galvanizing or powder coating adds 10 to 50 microns of surface thickness per side. If compression patterns and module cutouts are designed without plating clearance allowances, electrical switch components will bind, crack during insertion, or fail to achieve proper weather sealing against the outer bracket face.

By collaborating with experienced sheet metal fabricators, OEM procurement teams can select an optimized weather-resistant Outlet Sheet Metal Bracket solution that mitigates corrosion hazards and ensures exact dimensional compliance.

8. What industries rely heavily on metal brackets?

Industries that rely heavily on metal brackets include HVAC and commercial water heating, industrial automation, telecommunications, server cabinet rack manufacturing, renewable energy systems, and commercial transportation.

1. HVAC, Commercial Water Heating, and Appliance Enclosures: Commercial water heating systems and HVAC units utilize extensive metal bracket assemblies to secure compressors, heat exchangers, blowers, and external control panels. In commercial water heater designs, the main chassis housing contains internal thermal insulation, while an Outlet Sheet Metal Bracket is mounted externally. This specialized Outlet Sheet Metal Bracket houses electrical switch buttons, digital display boards, and module controls outside the roofing sheets metal enclosure without protective outer covers, demanding high weather resistance and structural stamina.

2. Industrial Automation and Electrical Control Systems: Manufacturing plants utilize custom metal brackets to mount Programmable Logic Controllers (PLCs), sensor arrays, safety light curtains, and motor drives within industrial control cabinets. Precision Z-brackets and DIN-rail mounting brackets allow control engineers to maximize spatial efficiency within compact NEMA/IP-rated electrical enclosures.

3. Telecom, Server Cabinet Racks, and Renewable Energy Infrastructure: Data centers and telecom tower sites depend on heavy-duty sheet metal brackets to mount server chassis, fiber optic distribution panels, and solar power inverter units. In outdoor telecom posts and solar array mountings, aluminum and stainless steel brackets provide structural resilience required to withstand continuous wind shear, seismic shaking, and severe solar UV degradation over decades of service.
