Structural Engineering and Load Dynamics of Mounting Brackets
Pivoting Mounting Brackets in Gliding and Horizontally Unsupported Applications
The Special Case of Horizontal Unsupported with Travelling Lower Run
Vertical Standing Installation Positions
Vertical Hanging Installation Applications
Comparative Analysis of Mounting Bracket Materials and Designs
Engineering Considerations and Global Design Requirements
Selecting the proper mounting bracket architecture provides the essential mechanical foundation for securing heavy-duty equipment, power enclosures, and moving cable carrier systems against dynamic multi-axis loads.
In modern industrial mechanical engineering, the structural performance of any assembly relies heavily on the physical interface connecting dynamic components to static frameworks. Mounting brackets serve as primary load transfer nodes, designed to withstand continuous shear stresses, bending moments, torsional forces, and cyclical vibrational energy. When a mounting bracket is improperly matched to system dynamics, structural flexing, premature fastener fatigue, misaligned guidance channels, and total structural failure can occur. Evaluating structural rigidity versus compliance is paramount when specifying a heavy duty mounting bracket assembly.

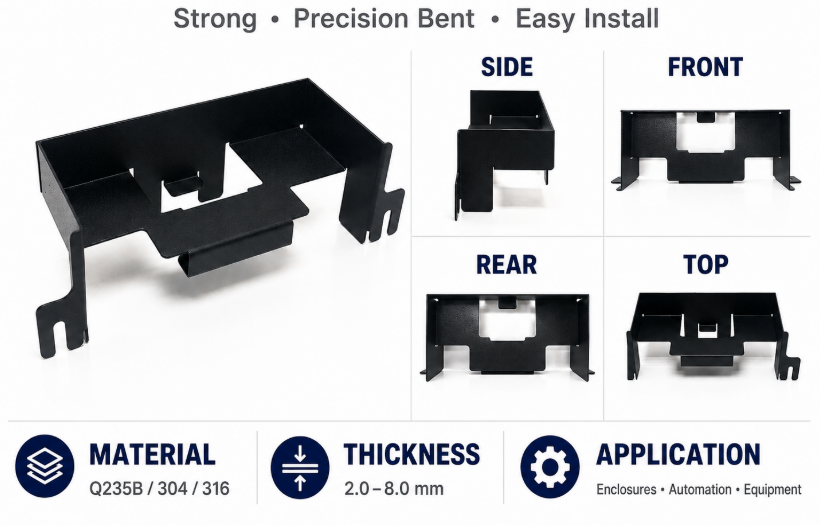

Cold-rolled sheet metal fabrication techniques, particularly precision CNC bending and stamping, allow a customized mounting bracket to achieve exceptional strength-to-weight ratios. The integration of mounting brackets in complex machinery requires careful calculation of yield strengths, tensile thresholds, and structural deformation limits. For specialized hardware housing and electronic enclosures, utilizing a mounting bracket for rectangle components of bent metal enclosure ensures exact physical alignment, uniform weight distribution, and complete resistance to localized stress concentrations caused by thermal expansion or operational vibration.
Furthermore, understanding the foundational principles of fastener selection, hole patterns, and torque retention mechanisms ensures that mounting brackets remain permanently locked under intense operational conditions. Modern industrial installations routinely subject mounting bracket hardware to multi-axis accelerations exceeding 5g. Consequently, finite element analysis (FEA) is systematically employed during the design phase to eliminate stress hot-spots and optimize rib reinforcements across the mounting bracket geometry.
Parameter | Specification Range | Engineering Significance |
Material Grade | Structural Steel Q235B / Stainless Steel 304/316 | Dictates ultimate tensile strength and corrosion resistance. |
Thickness Range | 2.0 mm to 8.0 mm Precision Bent Plate | Determines cross-sectional moment of inertia and flexural stiffness. |
Surface Treatment | Powder Coating, Galvanization, Anodization | Protects mounting bracket substrate from oxidation and chemical exposure. |
Yield Strength ($\sigma_y$) | 235 MPa to 620 MPa depending on material | Defines maximum elastic limit prior to permanent plastic deformation. |
Dynamic Fatigue Limit | $10^7$ cycles at nominal load rating | Ensures long-term survivability under continuous reciprocal motion. |
Maintenance Note & Inspection Protocol: Periodically inspect mounting bracket attachment hardware for torque loss using a calibrated torque wrench. Verify that structural welds and bend radii exhibit no micro-fracturing or surface coating degradation.
Pivoting mounting brackets are standard for gliding or horizontally unsupported applications because they articulate freely to equalize strain and accommodate minor structural misalignment over long travel lengths.
In high-speed horizontal automation, cable carriers and linear moving elements transition between supported and unsupported states during reciprocal strokes. Standard rigid mounting brackets can introduce severe bending strain at the fixed end when the moving component flexes or sags under its own mass. A pivoting mounting bracket incorporates a precision-engineered pin joint or hinge mechanism that permits small angular rotations. This articulation effectively converts destructive bending moments into purely axial forces, dramatically extending the operational lifespan of both the mounting brackets and the moving carrier system.
When operating in gliding configurations—where the upper run of a carrier glides directly on the lower run or within guide channels—pivoting mounting brackets prevent binding during stroke reversal. The dynamic friction between gliding surfaces creates varying thrust loads that fluctuate rapidly. The self-aligning capability of a pivoting mounting bracket compensates for slight track deviations, thermal expansion of structural framing, and installation tolerances. Consequently, selecting a pivoting mounting bracket for high-velocity linear motion guarantees smoother mechanical translation and significantly lower acoustic output.
To fully appreciate the scope of these hardware components across different industrial environments, engineers should consider the broader supportive role of mounting brackets in hardware applications. From automated machine tools to heavy logistics gantries, mounting brackets serve as the critical mechanical interface that mitigates structural fatigue and secures dynamic equilibrium across complex motion profiles.
Elimination of localized bending moments at terminal attachment points through angular swivel tolerance.
Compensation for structural frame deflection under heavy payload conditions.
Reduction of push/pull force spikes during acceleration and deceleration phases in long-travel gantries.
Component Feature | Standard Specification | Operational Role in Pivoting Brackets |
Pivot Pin Material | Case-Hardened Alloy Steel / Bronze Bushing | Provides smooth rotational joint articulation with zero galling. |
Swivel Angle Range | $\pm 15^\circ$ to $\pm 45^\circ$ Articulation | Absorbs dynamic sag during horizontal carrier extension. |
Strain Relief Comb | Integrated Heavy-Duty Tie Clips | Secures electrical cables and hydraulic hoses directly at the bracket pivot point. |
Mounting Hole Configuration | Slotted / Multi-Axis Pattern | Simplifies mechanical positioning and fine positional tuning during assembly. |
Working Principle (Pivoting Articulation): The pivoting mounting bracket design distributes mechanical forces evenly across its pivot axle. As the carrier approaches maximum unsupported extension, the bracket tilts slightly, maintaining neutral axis alignment and preventing mechanical binding.
The special case of horizontal unsupported with travelling lower run demands specialized mounting bracket positioning to manage pretension forces, inverse bending radii, and shifting centers of gravity.
When an application requires an inverted or floating horizontal arrangement where the lower run actively moves while the upper run remains fixed, standard load calculations no longer apply. In this configuration, gravity acts in direct opposition to the carrier pretension, creating a complex force curve across the mounting brackets at both moving and stationary ends. Selecting the appropriate mounting bracket design requires evaluating the total unsupported length (FLg or FLb values), payload weight per meter, and operating acceleration rates to prevent excessive sag or catastrophic buckling.
In this specialized arrangement, the moving mounting bracket located on the travelling lower run experiences alternating tension and compression vectors with every reversal of direction. If the mounting bracket lacks adequate torsional rigidity, the lower run will twist laterally, causing tracking errors and premature side-wall wear on the moving assembly. Engineering a reinforced mounting bracket with expanded footprint dimensions and stiffened gussets provides the lateral resistance required to keep the travelling lower run perfectly aligned along its travel vector.
Furthermore, industrial enclosures mounted directly to travelling lower runs require custom mounting hardware designed to maintain structural integrity despite continuous shock loads. Integrating specialized bent metal enclosure mounting brackets ensures that vulnerable electronics, power distribution blocks, and sensor boxes remain securely attached without risking fastener loosening or housing distortion during rapid directional changes.
Pretension Calculation: Ensuring the mounting bracket angle counteracts natural sagging across the unsupported stroke.
Lateral Stability Reinforcement: Utilizing wide-base mounting brackets with dual-side anchor points to suppress side sway.
Acceleration Limits: Restricting maximum inertia forces to prevent dynamic whip at stroke end positions.
Operating Parameter | Unsupported Standard Configuration | Travelling Lower Run Configuration |
Primary Stress Vector | Vertical Bending & Cantilever Load | Reversible Axial Tension & Dynamic Torsion |
Bracket Rigidity Requirement | Moderate Compliance (Pivoting Preferred) | High Torsional Rigidity with Rigid/Pivoting Hybrid |
Sag Tolerance Limit | Up to 50 mm dependent on length | Strictly Controlled (< 15 mm) to Prevent Interferences |
Fastener Shear Load | Unidirectional Shear Forces | Bidirectional Dynamic Cyclic Shear Forces |
Operational Tip: Always incorporate lock washers or thread-locking adhesive (e.g., medium-strength threadlocker) on mounting bracket fasteners installed on travelling lower runs to prevent bolt backing under continuous vibration.
Vertical standing installation positions require rigid mounting brackets capable of supporting total column loads while providing robust strain relief to counteract gravity-induced cable sagging.
In vertical standing motion systems—such as vertical lift modules, automated storage/retrieval systems (ASRS), and multi-axis machining centers—the mounting bracket at the base carries the full structural weight of the moving system. Unlike horizontal setups where weight is distributed along a supporting floor or tray, vertical standing mounting brackets operate under compressive column stress. The primary design objective for a vertical standing mounting bracket is ensuring zero angular play at the base, as even a fraction of a degree of tilt will magnify along the vertical height, resulting in collision with machine frameworks.
To maintain absolute vertical alignment, rigid mounting brackets with precision-machined reference edges and multi-point bolt patterns are industry standard. The lower mounting bracket must be securely anchored to a stable machine foundation. Furthermore, because cables and hoses within a vertical standing carrier constantly exert downward gravitational force against the top curve, the mounting brackets must incorporate heavy-duty strain relief plates. These strain relief mechanisms prevent internal conductors from sliding downward and placing tensile stress on electrical terminals or hydraulic connections.
European machine tool builders predominantly favor modular rigid mounting bracket designs for vertical standing applications because they permit rapid micro-adjustments during commissioning. Incorporating precision jack screws or slotted shim plates into the mounting bracket footprint allows installation technicians to dial in perpendicularity down to fraction-of-a-millimeter tolerances, guaranteeing smooth vertical motion across lift heights exceeding ten meters.
Column Load Calculation: Verifying that the lower mounting bracket compressive strength exceeds total assembly weight by a minimum safety factor of 3.0.
Perpendicular Alignment: Utilizing ground datum surfaces on the mounting bracket to guarantee exact 90-degree alignment relative to the mounting face.
Strain Relief Integration: Anchoring all conduit, cabling, and pneumatic lines to the mounting bracket strain comb using heavy-duty clamps.
Design Element | Vertical Standing Specification | Engineering Benefit |
Bracket Base Footprint | Expanded Rectangular Flange | Distributes compressive loads over larger surface area, reducing floor pressure. |
Strain Relief System | Aluminum / Steel Comb with C-Rails | Secures cables every 100 mm to eliminate strain on electrical connections. |
Alignment Features | Precision Dowel Pin Holes | Ensures exact repeatable positioning during maintenance tear-downs. |
Max Recommended Height | Up to 6.0 Meters (Unsupported) | Prevents column buckling of the underlying guide mechanism. |
Maintenance Note (Vertical Standing Systems): Inspect strain relief clamps on vertical mounting brackets every six months. Check that electrical cables have not slipped downward and that the base bracket anchorage bolts maintain full specified torque.
Vertical hanging installation applications rely on high-tensile hanging mounting brackets designed to withstand continuous tensile suspension forces and damp sway caused by high-speed lateral accelerations.
In suspended crane systems, overhead gantries, and vertical hoist drop stations, energy supply systems hang freely from an upper anchor point. In this orientation, the upper mounting bracket bears the full suspended dead weight of the entire carrier assembly, cables, fluids, and internal separators. Tensile stress concentration is the primary failure mode in hanging setups. Therefore, a hanging mounting bracket must be engineered from high-yield cold-formed metal or heavy-gauge steel plates featuring generous fillet radii to eliminate sharp stress risers.
Safety considerations are paramount in overhead hanging installations. Unlike floor-supported equipment, a failed hanging mounting bracket presents immediate safety risks to personnel and machinery below. European engineering standards mandate high structural safety factors (typically 5:1 or greater) for hanging mounting bracket hardware. Additionally, secondary safety catch mechanisms or dual-bolt redundant anchor points are frequently integrated into the mounting bracket geometry to prevent catastrophic detachment in the event of an severe external impact or earthquake event.
Lateral stability is another critical challenge in vertical hanging systems. When the overhead crane accelerates horizontally, the suspended carrier tends to swing like a pendulum. To suppress this oscillation, specialized hanging mounting brackets feature wide transverse attachment wings or integrated lateral dampening pads. These elements dissipate kinetic energy, ensuring that the hanging assembly remains stabilized within its dedicated travel envelope without contacting adjacent structural steelwork.
High Safety Factor Tensile Design: Engineered to exceed maximum dynamic hanging loads by 500% or more.
Redundant Fastening Geometry: Dual-hole or multi-bolt configurations ensuring single-point bolt failure does not cause dropped loads.
Anti-Oscillation Damping Integration: Wide-stance brackets designed to stabilize hanging assemblies during rapid lateral gantry movements.
Evaluation Aspect | Standard Mounting Bracket | Heavy-Duty Vertical Hanging Bracket |
Primary Load Mode | Shear and Compression | Pure Suspension Tensile Load |
Safety Factor Target | 2.0 to 3.0 x Working Load | 5.0x to 8.0x Dynamic Working Load |
Fastener Grade Requirement | Class 8.8 Structural Bolts | Class 10.9 or 12.9 High-Tensile Bolts |
Secondary Safety Feature | Optional | Mandatory (Safety Tether / Redundant Lugs) |
Working Principle (Suspension Safety): High-tensile hanging mounting brackets utilize a continuous load path that transfers gravitational pull directly from the carrier body to the primary overhead I-beam or support plate, bypassing non-structural cosmetic covers.
A comprehensive comparative analysis of mounting bracket materials and manufacturing methods highlights distinct mechanical trade-offs between precision bent metal, cast aluminum, and fiber-reinforced composite structures.
Selecting the optimal mounting bracket requires balancing weight, rigidity, chemical resistance, production volume, and cost. Sheet metal mounting brackets produced through precision bending operations offer superior versatility and cost-efficiency for custom industrial enclosures and medium-to-heavy load applications. The cold-working process during metal sheet bending increases localized yield strength along the bend line, providing impressive structural stiffness without adding excessive dead weight to the assembly.
For specialized equipment housing where custom geometry, rectangular component cutouts, and flush mounting are required, precision metal fabrication remains unmatched. Utilizing a dedicated rectangle component mounting hardware solution crafted from bent sheet metal allows machine designers to integrate electrical connectors, cable pass-throughs, and structural mounting points into a single cohesive sub-assembly. This integration reduces total part counts, streamlines assembly line throughput, and ensures seamless fitment inside modern industrial cabinets.
In contrast, cast aluminum mounting brackets provide excellent dimensional stability and internal vibration damping, making them well-suited for high-precision CNC machine tools. However, cast components are susceptible to brittle fracture under severe shock loads and require expensive tooling investment. Composite mounting brackets engineered from glass-fiber reinforced polymers excel in highly corrosive chemical processing plants or washdown environments, though they exhibit lower thermal resistance and creep compliance under heavy continuous mechanical loads over extended periods.
Material / Construction | Mechanical Rigidity | Corrosion Resistance | Manufacturing Flexibility | Cost Efficiency (Low-Mid Volume) |
Bent Sheet Steel (Zinc Plated) | High | Moderate | Very High | Excellent |
Bent Stainless Steel 316 | High | Superior | Very High | Good |
Cast Aluminum Alloy | Very High | High (Anodized) | Low (Tooling Dependent) | Moderate |
Polymer Composite (PA66 GF30) | Moderate | Exceptional | Low (Injection Mold) | High (Mass Production Only) |
Design Insight: Why is the product designed this way? Precision bent metal mounting brackets feature relief notches at bend intersections to eliminate localized material tearing during hydraulic press brake forming, ensuring consistent grain structure and maximum load capacity.
Modern industrial mounting bracket design requires strict compliance with international mechanical engineering standards, focusing on modular integration, ergonomic installation, and long-term serviceability.
When engineering mounting brackets for global markets, manufacturers must account for distinct regional preferences and technical specifications. What features do European customers care about most? Industrial clients in Europe heavily prioritize modular design compatibility, standardized DIN/ISO hole patterns, rapid clamp integration, and clean aesthetic finishes like matte passivated stainless steel or uniform powder coating. Furthermore, European automation standards emphasize eco-design principles, demanding that mounting bracket hardware be fully recyclable and easy to disassemble during machine decommissioning.
Another major engineering consideration is the optimization of installation ergonomics. Assembly technicians frequently work within cramped enclosure spaces or elevated machine frames. Mounting brackets designed with captive fasteners, keyhole mounting slots, and visual alignment indicators significantly reduce installation labor costs and prevent cross-threading errors. Slotted mounting holes allow multi-axis adjustment during final commission, enabling technicians to align cable carriers and component boxes with sub-millimeter precision across extended linear tracks.
Finally, environmental protection must be integrated directly into the mounting bracket specification. Operating environments subjected to high humidity, saltwater mist, alkaline cutting fluids, or abrasive dust require specialized surface passivation or high-durability thermosetting coatings. Selecting the correct combination of substrate material, bending geometry, fastener class, and protective coating guarantees that the mounting bracket will operate reliably throughout the multi-decade lifespan of industrial automation machinery.
Identify exact installation motion profile: Gliding horizontal, unsupported lower run, vertical standing, or vertical hanging.
Calculate total dynamic payload, acceleration g-forces, and environmental exposure conditions.
Determine required articulation type: Fixed rigid mounting bracket versus pivoting swivel mounting bracket.
Select appropriate material construction: Precision bent sheet metal, stainless steel, aluminum alloy, or reinforced polymer.
Verify compliance with international hole pattern standards, strain relief clip integration, and safety factor requirements.
Global Region | Primary Design Preference | Standard Surface Finish | Key Interface Standard |
Europe (EU) | Modular design, quick-release clamps, captive hardware | Passivated Stainless / Matte Powder Coat | ISO 2768-m, DIN standards |
North America (NA) | Heavy gauge steel plate, high safety margin, oversized bolts | Yellow Zinc Dichromate / Hot-Dip Galv | ANSI / ASTM specifications |
Asia-Pacific (APAC) | Compact footprint, lightweight construction, fast cycle tooling | Clear Anodize / Bright Electro-Zinc | JIS B standards, custom OEM patterns |
Final Summary & Best Practice: Selecting the correct mounting bracket requires a rigorous holistic evaluation of dynamic kinematics, load vectors, and material properties. By matching the specific mounting bracket architecture to the physical demands of the application—whether pivoting for gliding travel, rigid for vertical standing, or reinforced bent metal for electrical enclosures—engineers achieve maximum system stability, reduced maintenance overhead, and exceptional long-term operational performance.
